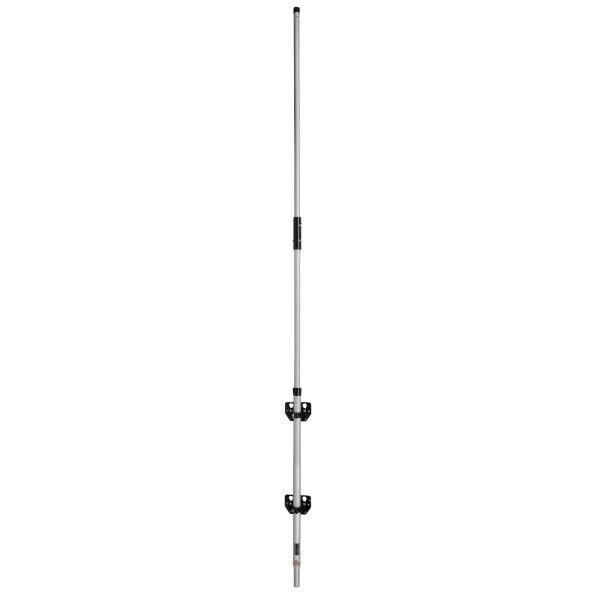

QFPC pole

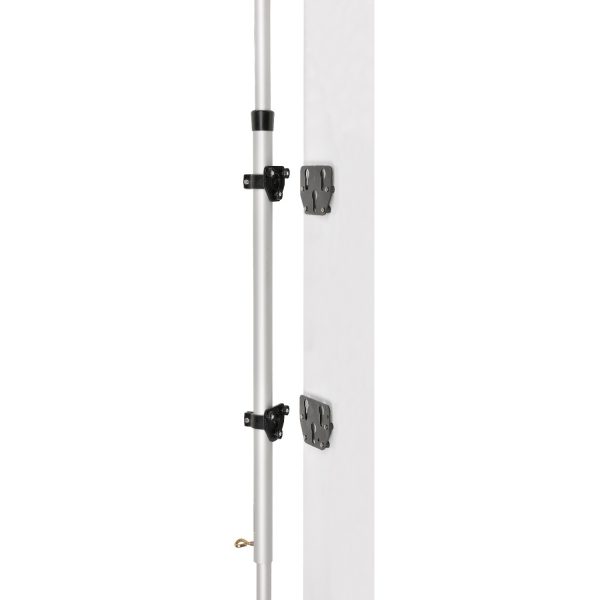

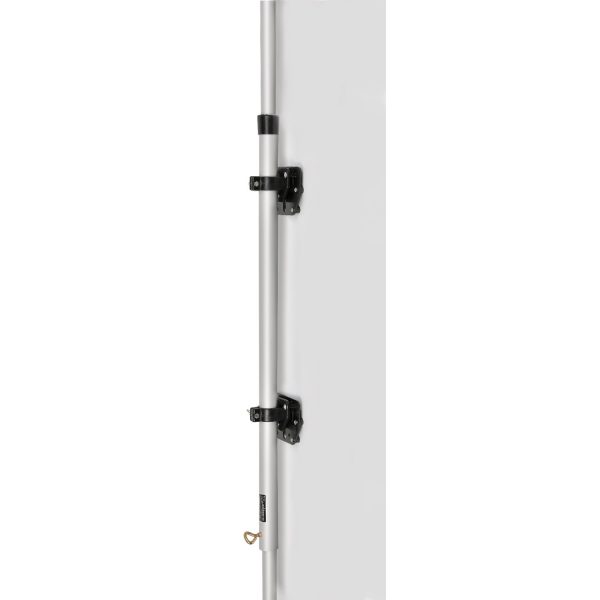

QFPC mounting
QFPC parts

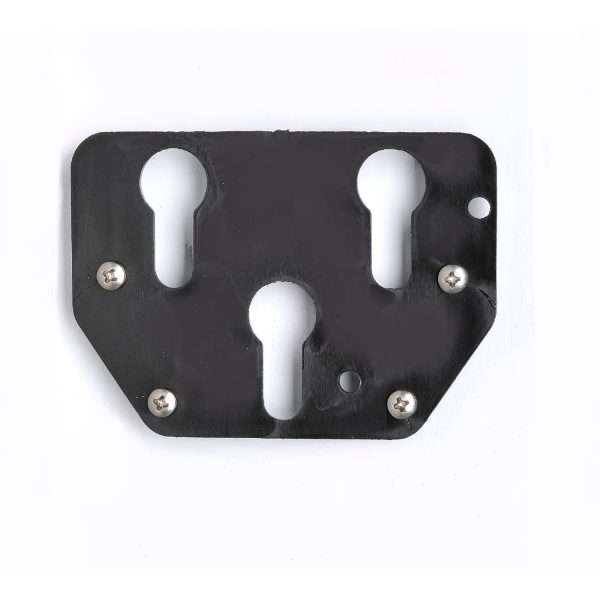

QFPC bracket
QFPC label

TV, 4G Internet Antenna – Quick Release Side Mount & Mast-suits RV’s, Caravans, Boats, etc


Quick Release Side Mounted Mast Kit

Part Number: QFPC-P

Share this product!
Report Abuse


Quick Release Side Mount & Mast – Easy to use; remove and install Antenna in minutes

Suitable for TV and 4G Internet Antennas

Easy to install.  Comes complete with all fittings to mount to fiberglass van walls or traditional van constructed walls.

Quick Release Side Mount & Mast Kit features:

  • Easily adjusted to tune your antenna into the signal while standing comfortably.
  • Also suitable for weather stations
  • Full set up detailed fitting instructions.
  • Full Stainless steel Mounting screws and Aluminum large grip area special Pop rivets.
  • All brackets and hardware UV Stable Plastic or stainless steel for longevity.
  • Easily adjusted to tune your antenna into the signal while standing comfortably.
  • 1 x 1500 mm and 1 x 1000 mm mast lengths (25.4mm diameter) join together effortlessly to provide a maximum height of 2500 mm plus the mounting height from the ground.
  • Allows for a good height range to adjust the antenna for best signal position.
  • Mast support aluminium pole measures 32mm dia. x 750mm for a study mounting base.
  • Kit comes with extra spacers if needed to clear an awning rail.
  • Technical Support.


Antenna Masting Importance and Use:

Our full range of masts and mounts for the caravan are made in Australia. Care is taken to use the best material for both strength, weight and longevity.

Customers back to 1994 are still using our telescopic mast which is warrantied one owner for a lifetime.  The thumb screws and tee nuts which are the only parts that can wear or rust out are all replaceable for a nominal amount of money.   Adjusting the antenna for direction and height is a simple thing with the explorer brand.

Adjustable height is very important.  Signals are not all the same. They travel at different heights dependent upon the transmitter sitting, the soil conditions and the general topography.  So, it is super important to have some flexibility with your height adjustment. Fixed units on caravans have this distinct disadvantage. They assume a single height works best all the time.  In addition, the direction alignment is approximate, not exact. Add to that the lack of vertical polarization and you have antennas that are unlikely to perform 50% of the time.

Masts and mounts or poles and mounts are an important element in the search and finding of good television pictures free of pixilation.


  • All Metal Fixings components are made from Stainless steel or Aluminium (Special wide grip POP rivets) to prevent corrosion.
  • Plastic components are all Black UV stabilised for long life and made from either Nylon or Acetal for strength and dimensional stability (Mounting Brackets or mast Joiner), Polypropylene for a combination of strength and flexibility (Brackets).
  • All Masting is made from Anodised Aluminium for corrosion protection to provide many years of service.
  • The Masting is fully adjustable from the ground-and provides a strong mount that has the flexibility of height adjustment and directional adjustment while installed with just the twist of a single Thumb Screw.
  • The Mast can be extended using the supplied joiner and 1-meter mast pole to ensure that even when in a hilly area you can position the antenna into the signal area that would otherwise be blocked by the mountain or building.

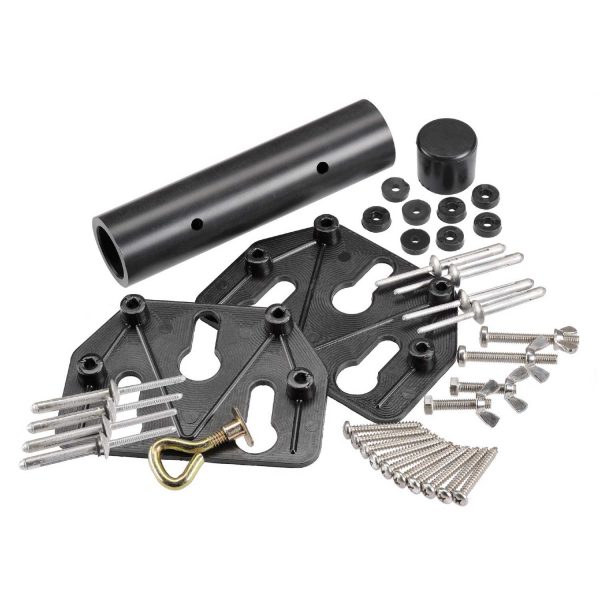

Parts Included

The kit comes complete with:

  • 2 x Black UV Stabilised Brackets
  • 1 x 40mm x 5mm SST set screw
  • 4 x 5mm SST Wing Nuts
  • 1 x 1500 mm x 25mm Dia. Aluminium Masts
  • 1 x 1000 mm x 25mm dia. Aluminium Mast
  • 1 x 750mm x 32mm Dia. Aluminium section
  • 2 x 25mm x 5mm dia SST set screws
  • 2 x polypropylene side mount brackets
  • 1 x 25mm mast cap
  • 8 x small spacers
  • 8 X SST 1 ¼ inch x #8 mounting screws
  • 8 x Mega Grip Rivets (Aluminium)
  • 1 x T-nut
  • 1 x Thumbscrew
  • 1 x ACETAL Joiner
  • Full instructions


QFPC-P Assembly instructions for the QR Side mounting system -16-07-18

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 2 kg
Dimensions 155 × 11 × 11 cm
