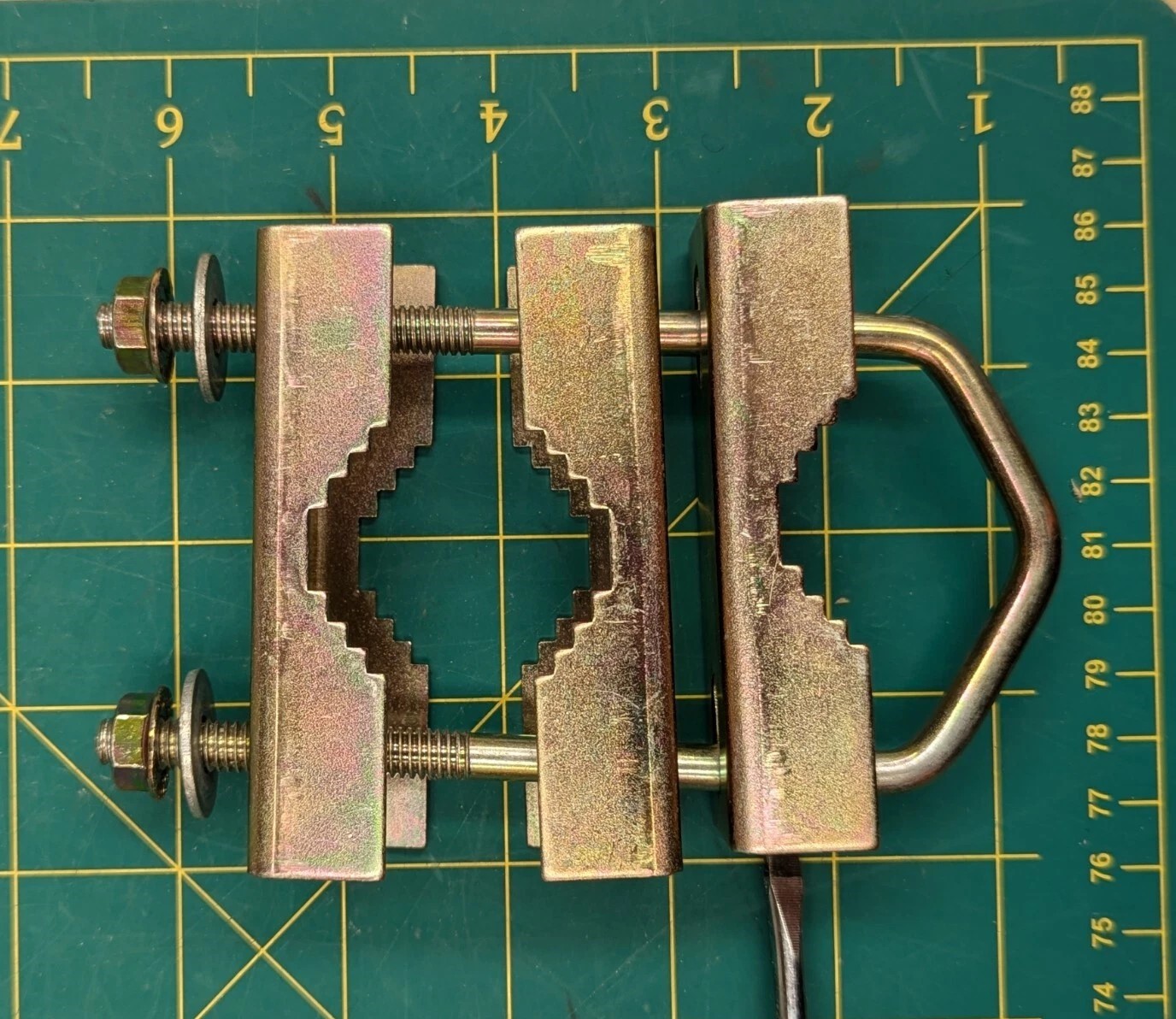

drawbar mount with measurements

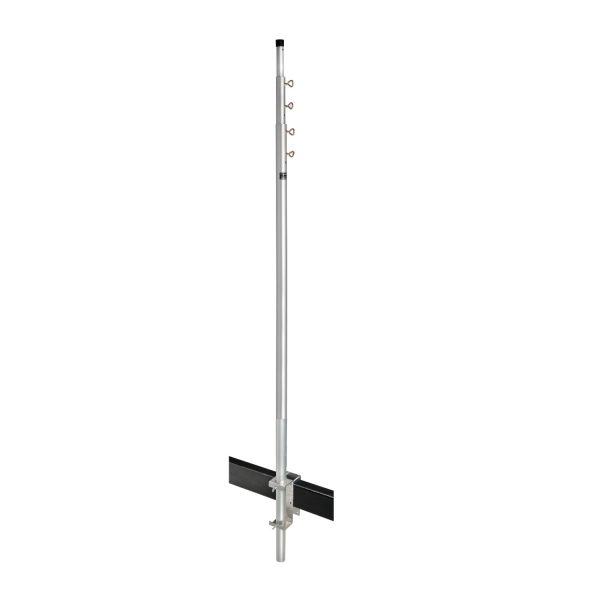

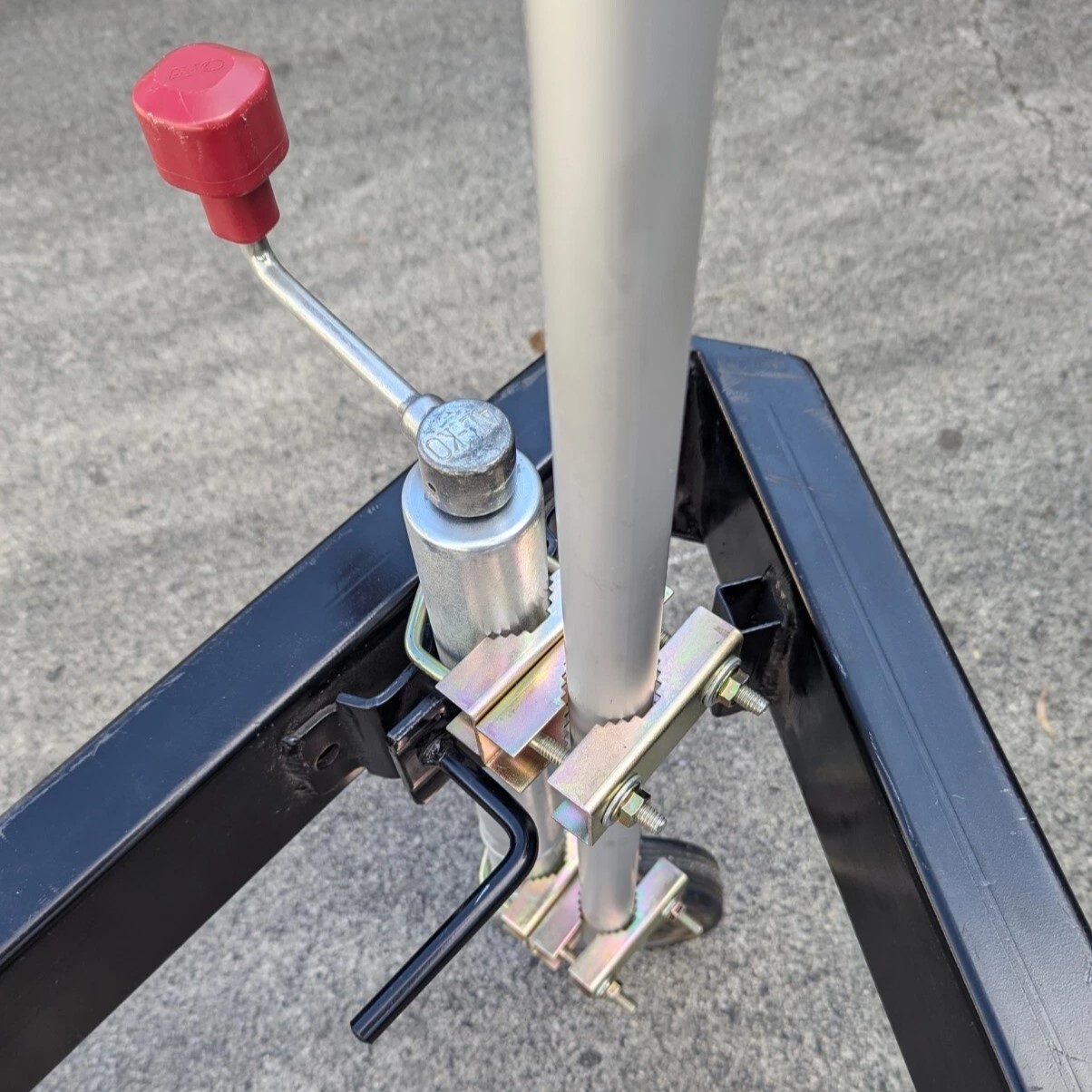

Drawbar with pole
DBM fitted to arear bull bar view
DBM fitted to arear bull bar

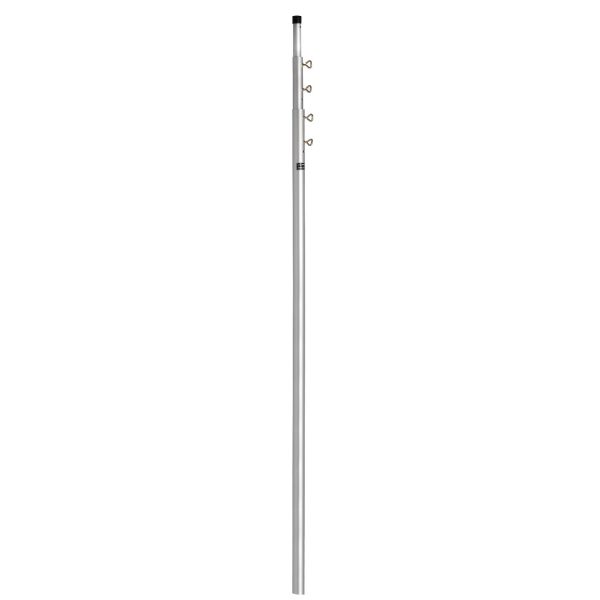

MK pole
MK pole measurement
MK label

Explorer Draw Bar Mount and Telescopic Mast for TV, 4G Internet Antenna- RV’s, Caravan, Boat

$147.75

Explorer Draw Bar Mount+Telescopic Mast Pole for TV Antenna- RV’s, Caravan, Boat

Part Number: MK-P

Brand:
Share this product!
Report Abuse

Description

Explorer Draw Bar Mount and Telescopic Mast kit for TV, 4G Internet Antenna- suits RV’s, Caravans, Boats. Includes a Stainless Bracket and Aluminium Telescopic Mast that extends Up to 4.2M!

This Kit features:

Explorer Draw Bar Mount and Telescopic Mast is easy to mount and light weight and easy to adjust height and direction of your antenna. It allows the user to fine tune the antenna position by as little as 1 cm if needed which is an often-needed flexibility when receiving vertically transmitted signals. Easy to use with our drawbar Bracket – It takes only seconds to use once the mounting kit has been installed.

Our unique universal Stainless-Steel Mounting Bracket is permanently mounted (but can be removed).

It is easy to install in just a few minutes and requires no special tooling.

The fact that it is permanently mounted means that can just drop your mast and antenna into place and set the desired height and direction and then lock off with two thumb screws and your away. The Stainless steel construction means no corrosion problems and many years of dependable service.

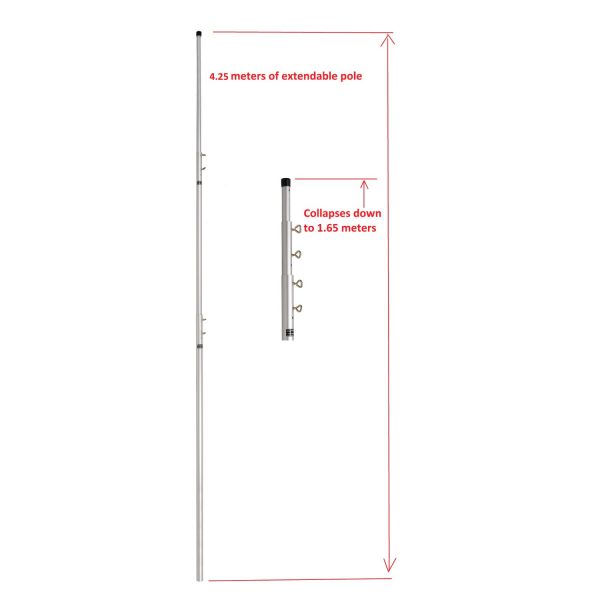

Explorer brand Draw Bar Mount with 3-piece lightweight strong anodised aluminium mast extends to 4.2M and collapses to 1.65M.

(Base 38mm OD, Middle 32mm OD, Top 25mm OD)

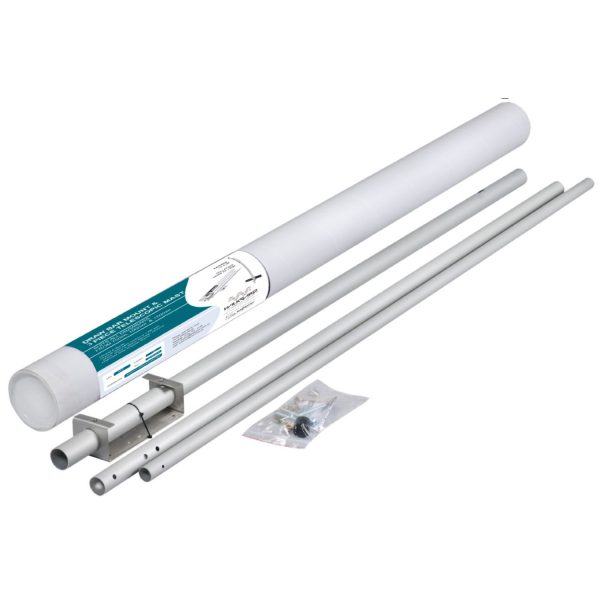

This product comes with stainless Steel Draw Bar Mount as a COMPLETE MOUNTING KIT.

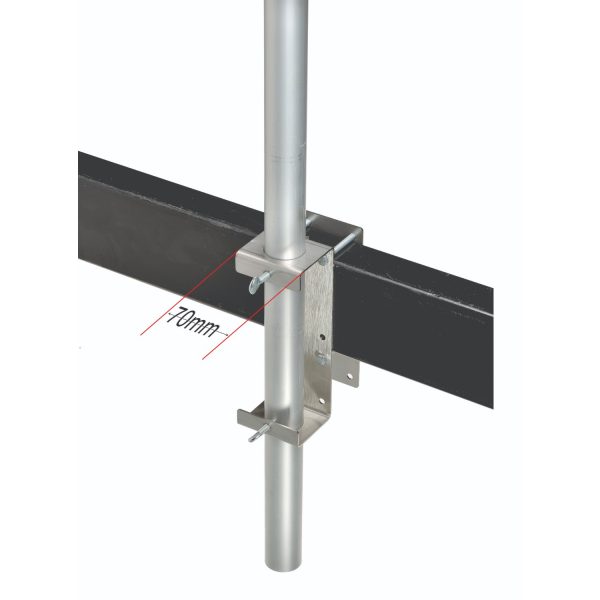

Width of drawbar mount is 70mm

Suits all drawbars from 75mm, 100mm and 150mm. Made from a high-grade Stainless-Steel exceptional quality. Also supports any mast from 25mm to 38mm Diameter. Last for years and is permanently mounted to the drawbar.

Antenna Masting Importance and Use:

Our full range of masts and mounts for the caravan are made in Australia. Care is taken to use the best material for both strength, weight and longevity.

Customers back to 1994 are still using our telescopic mast and mounting!  The thumb screws and tee nuts which are the only parts that can wear or rust out are all replaceable for a nominal amount of money and are on the web site.  (parts and accessories)   Adjusting the antenna for direction and height is a simple thing with the explorer brand.

Adjustable height is very important.  Signals are not all the same. They travel at different heights dependent upon the transmitter sitting, the soil conditions and the general topography.  So, it is super important to have some flexibility with your height adjustment. Fixed units on caravans have this distinct disadvantage. They assume a single height works best all the time.  In addition, the direction alignment is approximate, not exact. Add to that the lack of vertical polarization and you have antennas that are unlikely to perform 30% of the time.

Masts and mounts or poles and mounts are an important element in the search and finding of good television pictures free of pixilation.

Specifications

  • Fully anodised for corrosion protection.
  • the design allows for air flow between the tubes to prevent salt build up or seizing of parts due water and salt being trapped.

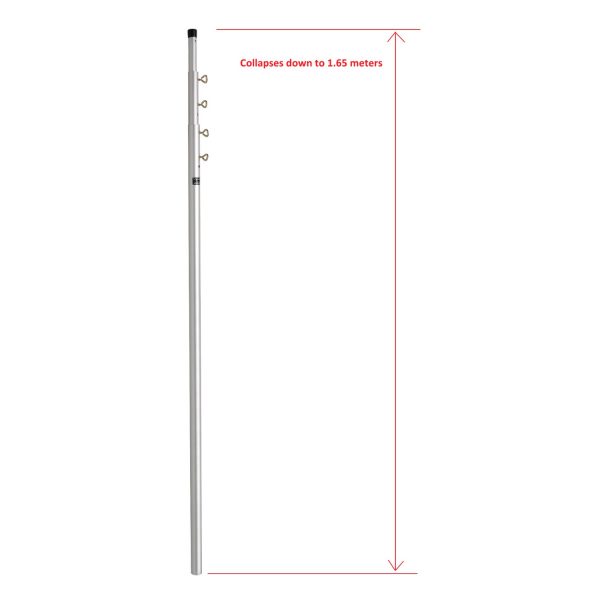

  • Small collapsed size allows for easy storage – 1.65 metres.
  • Light eight makes for effortless handling.
  • Large extension – up to 4.2 meters – helps ensure the antenna can be moved above obstacles blocking the signal path or where due to mountainous topography the signal is being blocked down lower.
  • Infinite height adjustment between these heights to get the best possible position for signal capture.
  • Suits all Drawbars 75mm, 100mm and 150mm. Width of drawbar mount 70mm.
  • Made of high-grade stainless-steel, exceptional quality.
  • The stainless Steel Drawbar is conveniently permanently clamp mounted to the drawbar (but can be removed).

Parts Included

Parts Include:

  • 1 x Stainless steel Drawbar bracket and backing plate.
  • 4x 6 mm x 65mm set screws Hex head ZP.
  • 4 x 6 mm Flat washers ZP.
  • 4 x 6 mm Hex Nuts ZP.
  • 2 x Thumb Screws 6 MM x 25mm.
  • Assembly and Fitting Instructions.
  • 38mm dia x 1500 mm aluminium tube.
  • 32mm dia x 1500 mm aluminium tube.
  • 25mm dia x 1500 mm aluminium tube.
  • T-Nuts ¼ inch ZP.
  • Thumb Screws ¼ inch ZP.
  • Mast Cap – 25mm.

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 2.8 kg
Dimensions 155 × 11 × 11 cm

Instructions

Mast Kit -MK-DBM-Instructions
