Cable and Connections.

6 Apr, 2021, 5:44 AM

Cable and connections.

We recently had a van come in to fit a new Quick Fix mast. We were astonished that still 35 years after the introduction of UHF frequencies, cables and connectors that were installed belong to the 70’s.

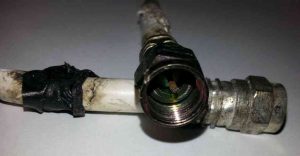

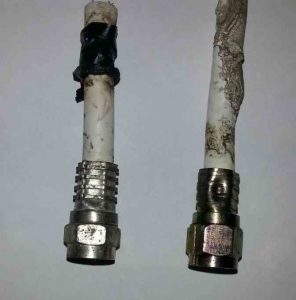

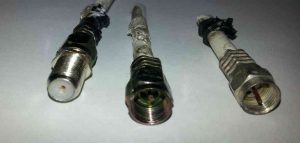

The cable lost a lot of signal for every metre installed. The connectors were crimped badly and in one case very poorly executed. Water had travelled down the cable rusting the internal fittings of the outlet plates. The outlet plates themselves where (PAL type)  with push style connections, which are not the standard for digital. We have included some pictures.

We cannot stress enough the importance of the cable an d connector

We cannot stress enough the importance of the cable and connector. Your antenna may well be doing a reasonable job but the signal when put on the cable cannot travel freely and is impeded by poor connections or cable quality. These do not allow the signal to flow and so the signal is lost.

Signal is energy.

We live in an age where energy is discussed all the time. There are 2 ways of handling it.

  • Waste it by not having suitable equipment that allows the free flow of the energy. Poor connections and cables put lots of obstacles for it to be stopped by. It is that simple.
  • Fix your connections and enjoy a better picture while away in your caravan, mobile home, camper or pop-top.



Sally Garden
RF Consultant Founder
Wilkgard Technology Group P/L
