TV, 4G Internet, Helium Hotspot/Mining or Home Weather Station Antenna Adjustable mast 2.5 to 3.5 Metres

$66.66

Telescopic Antenna Mast extends from 2500mm to 3500mm – Anodised Aluminium.

Part Number:TM2535-P

Brand:
Share this product!
Report Abuse

Description

Adjustable Antenna Mast – extends from 2500mm to 3500mm –

Can be used for TV, 4G Internet, Helium Hotspot or Mining  and Home Weather Station Antenna.

Adjustable mast 2.5 to 3.5M – perfect for the DIY or Professional.

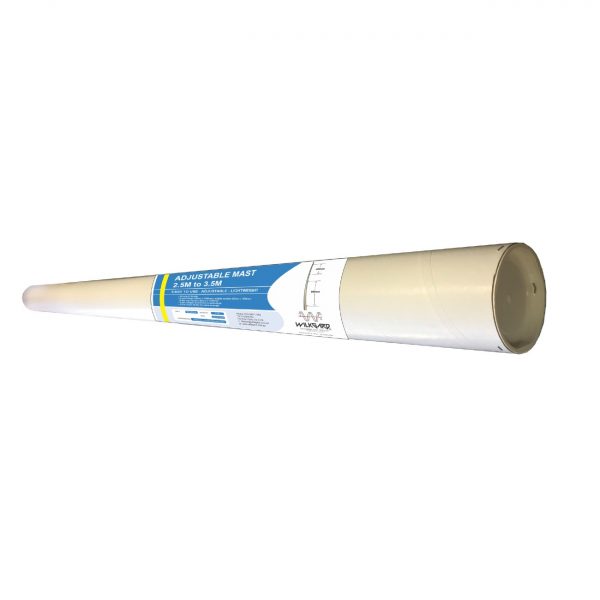

This lightweight Mast folds down for shipping to 2.0 meters and so can be shipped easily across this vast country of ours.

Yet it is easily assembled and extends to a very useful height of up to 3.5 meters.

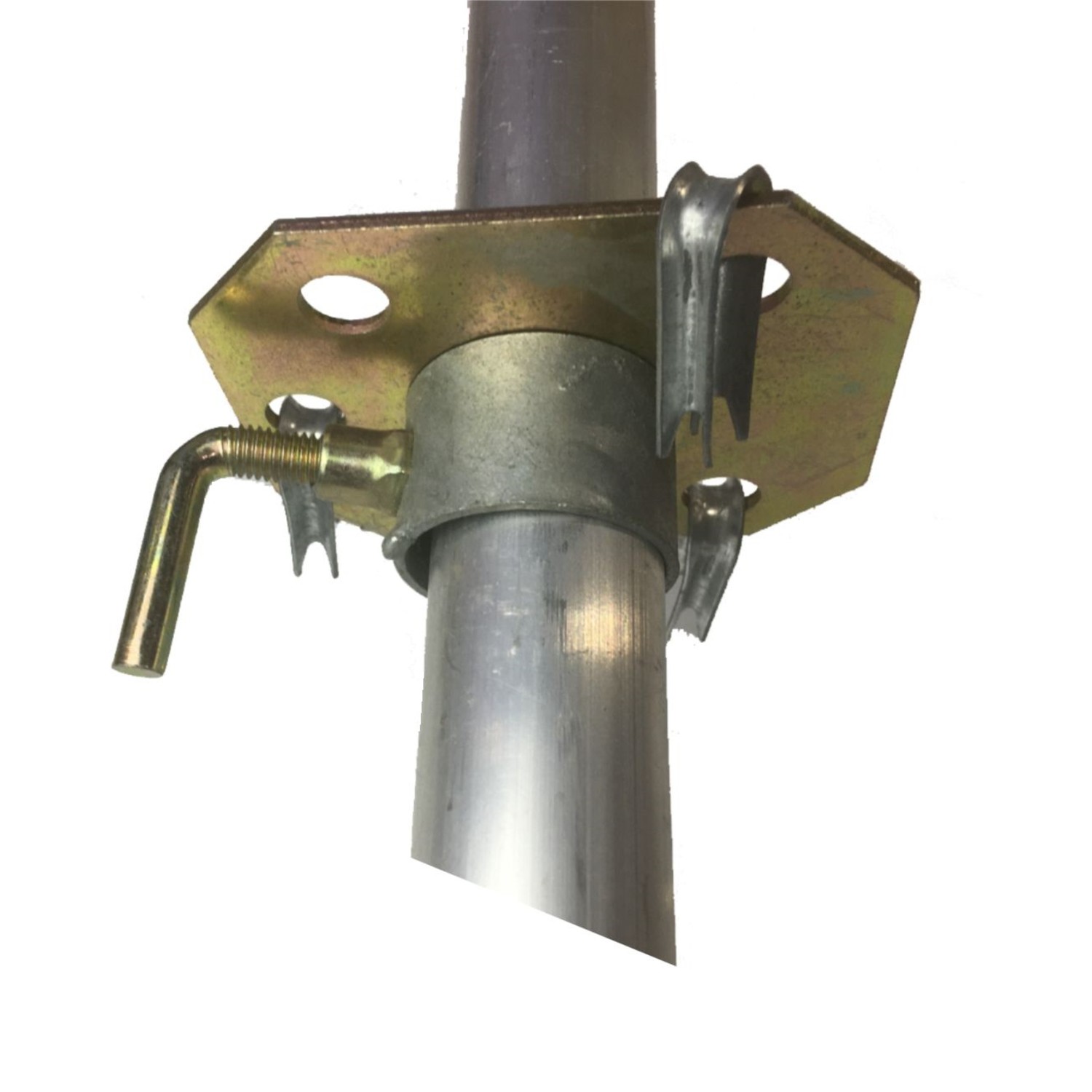

Use with any home or Commercial mounting in our range.

You don’t have to wrestle with an unwieldly heavy metal mast.

In addition, you can assemble the antenna and adjust the height for best position!

A very flexible and useful Mast.

Features:

  • Australian Made
  • TV Antenna Aerial Adjustable Mast from 2500 to 3500 mm.

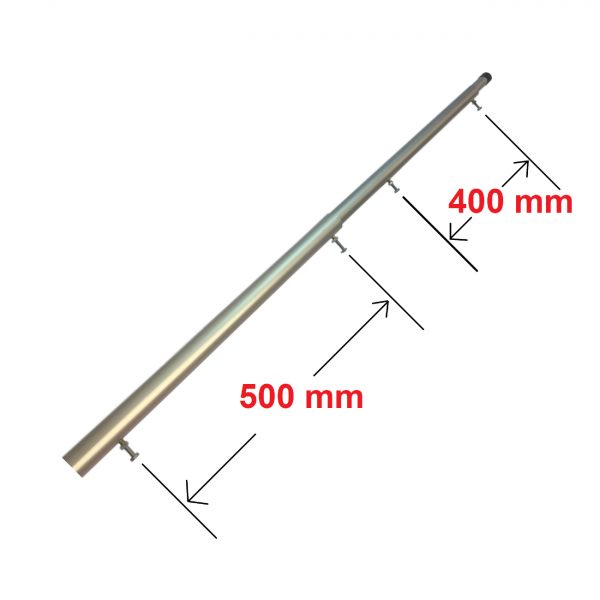

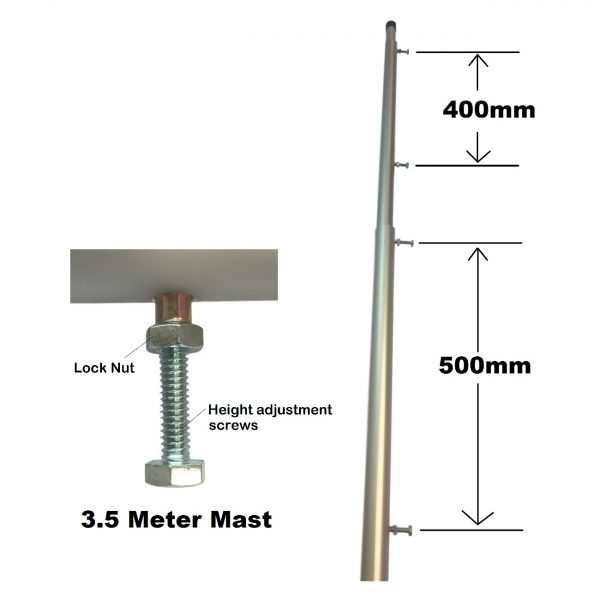

  • Lower stage 38mm Dia x 1500 mm Anodised Aluminium the Middle stage is 32mm Dia and 25mm Dia x 1500 mm upper stage.
  • Light Weight Aluminium construction with wide spacing lock down Bolts for extra strength and very low flex.
  • Easy to use and features the ability to adjust your antenna height and direction to the perfect position after you have locked the base section in place!
  • Can be Paired with our other mounting products to complete any mounting requirements.



Specifications

Specifications:

  • 38 mm diameter 1st stage Anodised Aluminium mast tube.
  • 32 mm diameter 2nd stage Anodised Aluminium mast tube.
  • 25 mm diameter 3rd stage Anodised Aluminium mast tube.
  • Height range adjustment – 2.5 meters to 3.5 meters.
  • Zinc plated and passivated T nuts.
  • Zinc plated bolts.
  • UV stabilised black plastic Mast cap

Parts Included

Parts Included:

  • 1 by 1500 mm x 25mm diameter anodised aluminium pole
  • 1 by 1500 mm x 32mm diameter anodised aluminium pole
  • 1 by 1500mm x 38mm diameter anodised aluminium pole

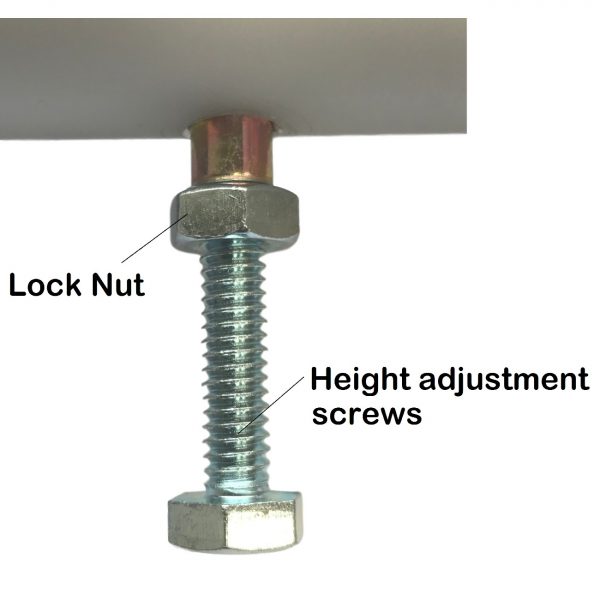

  • 4 by ¼ inch T -Nuts
  • 4 by ¼ inch x 1-inch-long Hex head Setscrew ZP
  • 4 by ¼ inch ZP nuts
  • 1 by 25mm Mast Cap

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 3 kg
Dimensions 196.0 × 5.5 × 5.5 cm

Instructions

TM2535-P Mast Instruction sheet – SKU M100-1049
