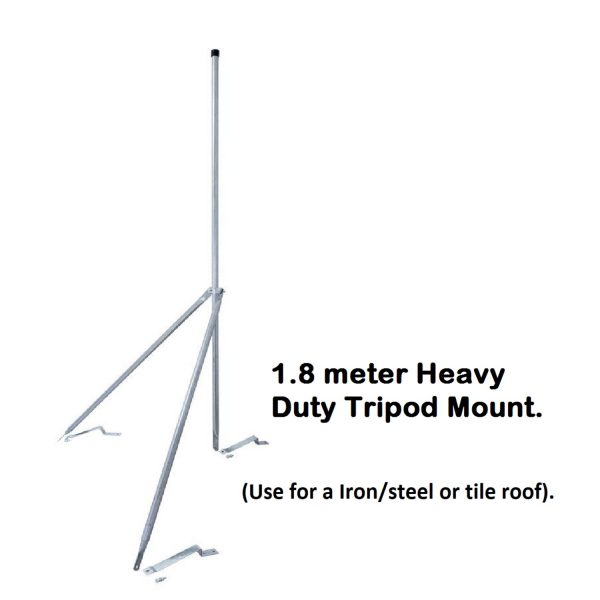

TRM118 tripod mount

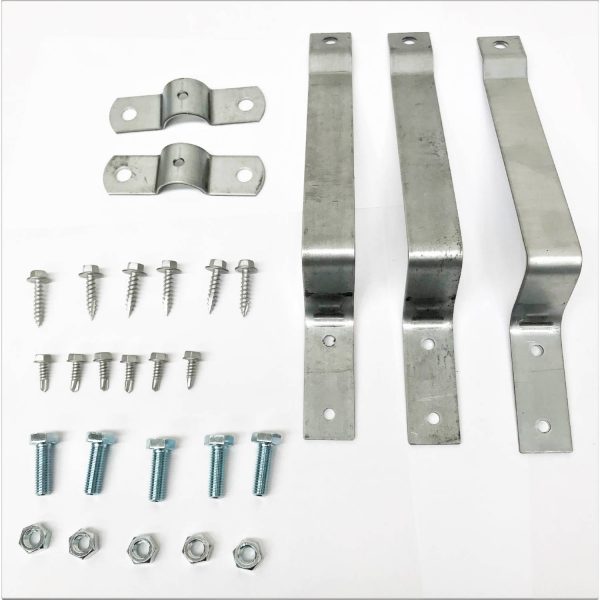

TRM118 Bolt pack

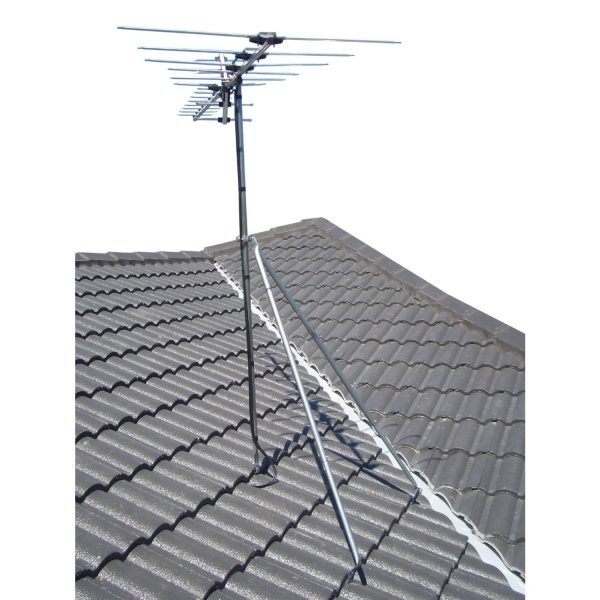

TRM118 example 2

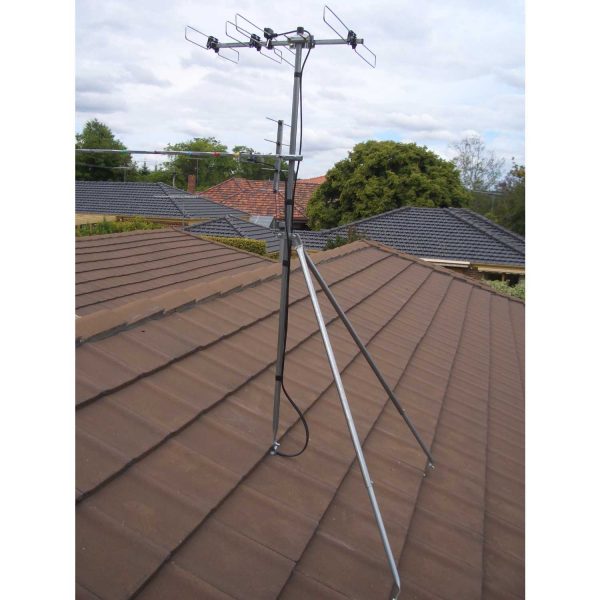

TRM118 example

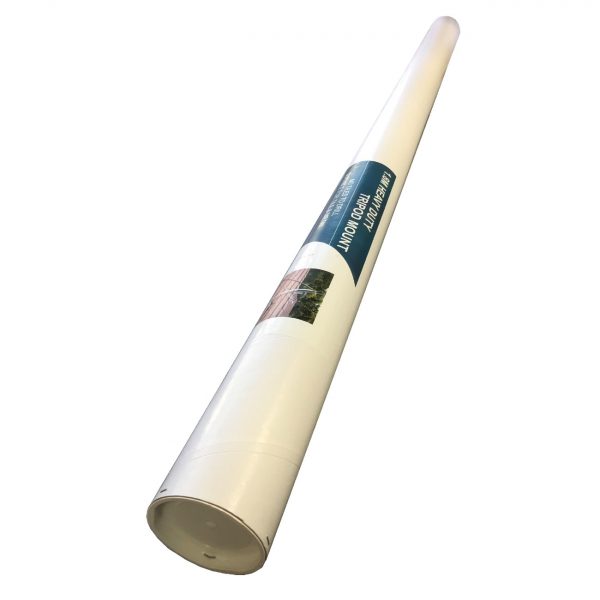

TRM118 package
TRM118 label

Tile or Iron Roof Tripod Antenna Mount + 1.8 m Pole for TV, 4G Internet, Helium Hotspot / Mining and Home Weather Station Antenna Mounting

$91.08

TRIPOD Mount 1.8 meter For Tile Roof

Part Number: TRM118-P

Brand:
Share this product!
Report Abuse

Description

Tile or Iron Roof Tripod Antenna Mount + 1.8 m Pole for TV, 4G Internet, Helium Hotspot or Mining and Home Weather Station Antenna Mounting.

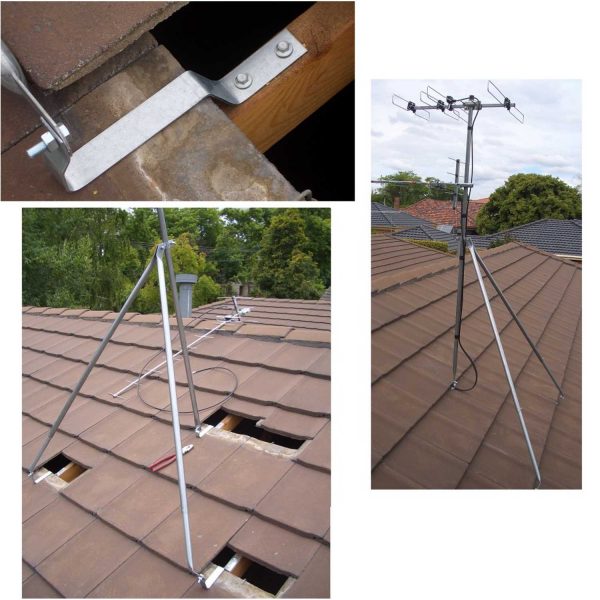

  • Z shaped brackets allow for no penetration of the tiles.

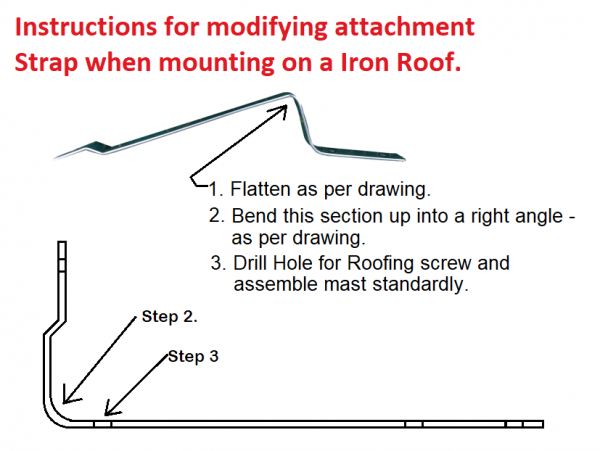

  • Or re-shape and use on Corrugated colour-bond Iron roof.
  • 1800 mm Mast included.
  • Tile or Iron Roof Tripod Antenna Mount is an easy mount to use.  Requires no tile drilling.  It is strong, well supported and should be used for mounting large antennas or smaller antennas that require a rigid mount that will not move and effect the signal- such as Helium Network or 4G internet antennas.
  • The wind resistance of antennas can be significant, but this mount will support the antenna without a problem.
  • Highly recommended to provide that professional quality installation.

Technical support is provided.

Warranty: Note an exception to our standard warranty terms -this product may exhibit small indents or defects in the coating of the large metal tubes and these are not covered under warranty. They will not affect the performance of the product in terms of strength or longevity but may exhibit slight spot surface rust after a while in service.

Specifications

Specifications:

  • Mast measures 1.8 meters x 25 mm.
  • All masts and stays are galvanised.
  • Fixings are Zinc Plated.
  • Z shaped brackets allow for no penetration of the tiles.
  • Or re-shape and use on Corrugated colour-bond Iron roof.

Parts Included

Parts Included:

  • 1 x 1800 mm x 25mm mast.
  • 2 x Telescopic stay bars 25mm wide.
  • 3 x Z Shape Tile roof mounting straps.
  • 5 x 25mm x 8mm diameter Hex head set screws.
  • 5 x 8mm Hex Nuts ZP.
  • 6 x 15mm x 5mm TEK Hex Flange Head screws.
  • 6 x 5mm x 6mm diameter self-tapping wood screws Hex Head.
  • 2 x 25mm saddles.
  • 1 x 25mm Mast cap.

Tutorials

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 5 kg
Dimensions 183 × 11 × 11 cm
