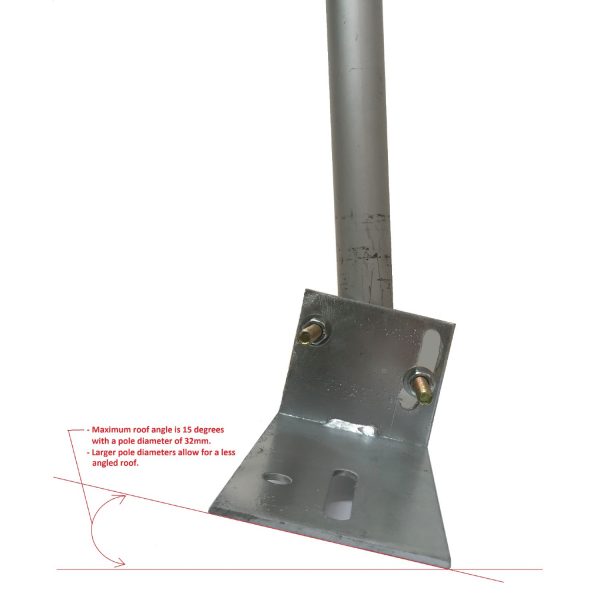

FLARM max leangth

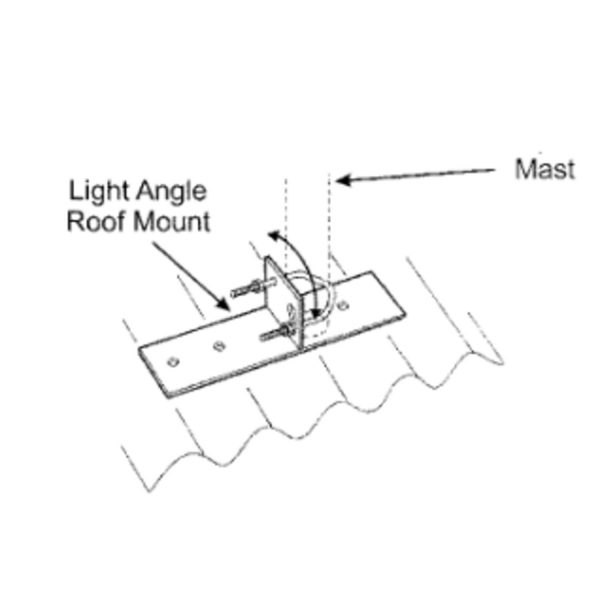

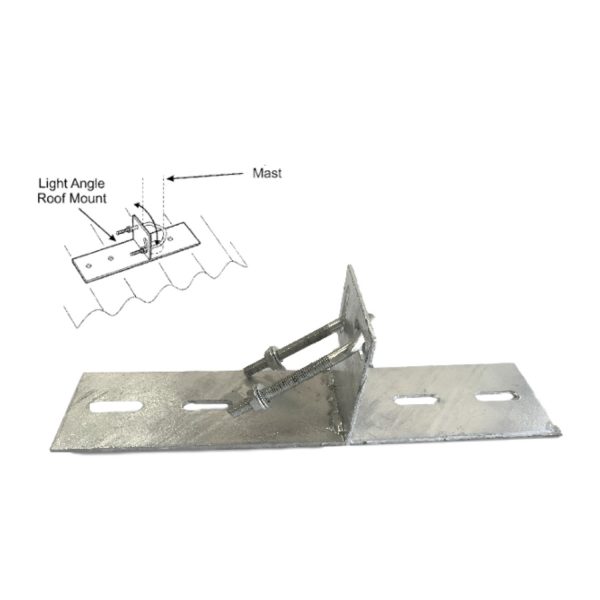

FPLARM sketch
Flat plate package

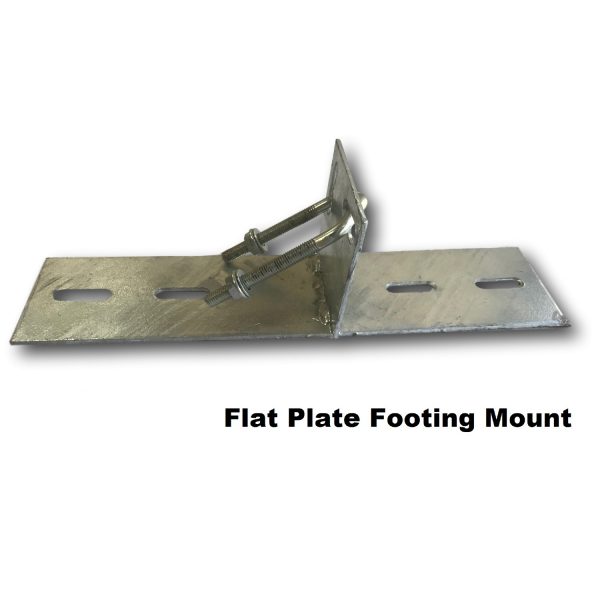

flat plate

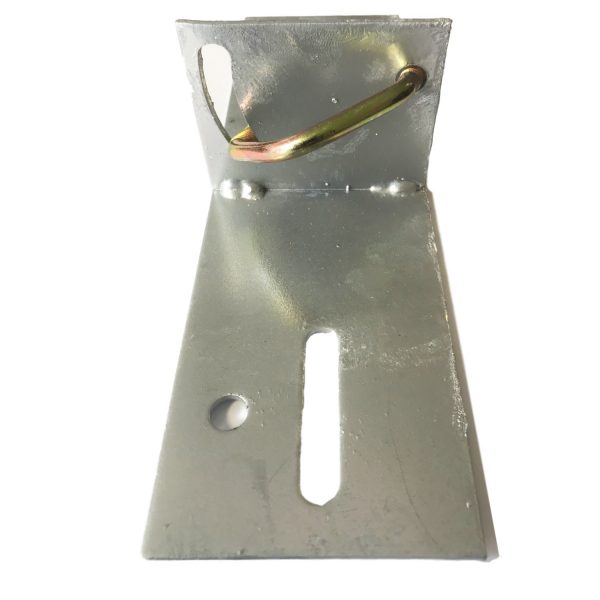

flat roof mount

TV Antenna or weather Station Flat Plate Footing Mount

$30.44

Light Flat Plate Footing Mount

Part Number: FPLARM-P

Brand:
: Guying Catalogue SKU: G100-1055 Category:
Share this product!
Report Abuse

Description

TV Antenna or weather Station Flat Plate Footing Mount Ideal for concrete, or flat or light angled roof. – Galvanized

TV Antenna or weather Station Flat Plate Footing Mount can be used to mount to any flat roof or surface or a mild angle roof.

Use with the appropriate Guying accessories.

NOTE:

  • Maximum roof slope for a light angle roof is 15 degrees slope.
  • Maximum pole diameter for a flat roof is 32mm diameter.

Specifications

Specifications:

  • Maximum Roof Angle is 15 degrease.
  • Maximum pole diameter at 15 degrees is 32mm.
  • Mount is fully hot dipped galvanised.
  • Medium 5/16-inch U-Bolt is Zinc Plated and Passivated.



Parts Included

Parts included:

  • 1 x Flat Plate Footing Mount
  • 1 x 5/16-inch Medium U-Bolt
  • 2 x 5/16-inch Nuts
  • 2 x 5/16-inch Washers

Tutorials

…..

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 1.2 kg
Dimensions 32.0 × 24.0 × 12.0 cm
