Campervan TV Cabling Kit complete with connections and 6 meters of cable. No special tools needed.

$47.05

Campervan Kit: 6 meters of cable fitted at one end with two PM8s and a twist on F connector

Part Number: 2PM8FT6-P

Brand:
SKU: K100-1020 Category:
Report Abuse

Description

This Versatile Kit has a fitting to suit nearly every circumstance. Whether you are going through a fibreglass wall or a thin bulkhead to a cupboard or internal thin wall we have a fitting in this kit you can use.

A Bulkhead fitting for a Wall thickness of up to 35 mm. No special tools needed.

A Bulkhead fitting for a Wall thickness of less than 3 mm, at one end and up to 35 mm at the other end or between two thin walls of less than 3 mm. Comes with 6 meters of RG6 Duo shielded cable. No special tools needed.

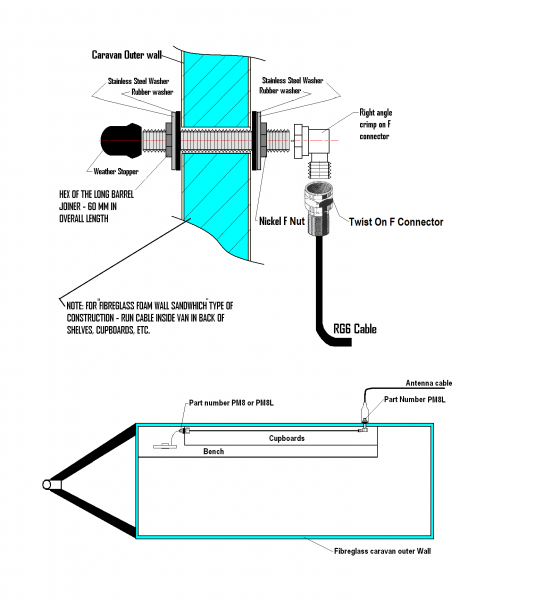

This Kit is ideal for thin shell fiberglass or other Thin walls and for use with a fiberglass wall and straight through into a cupboard. Use One fitting to bring the antenna signal in.

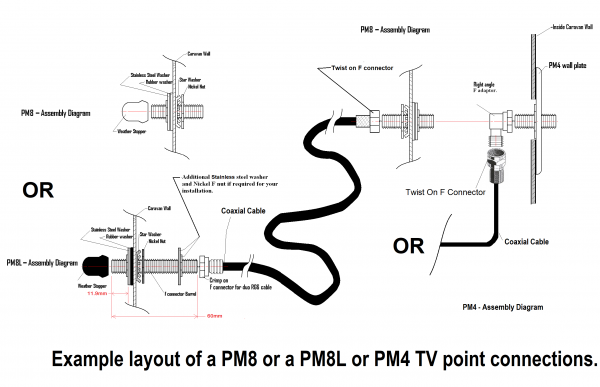

Connect the cable and run to a viewing point and cut to length. Use the supplied “twist on” F connector to fit off the cable and install the second fitting to deliver the signal to the TV.

This is a useful Kit for vehicles such as Combi Vans, HiAce Camper trailers or Vehicles with a Fiberglass shell or fiberglass walls up to 35mm thick or use between bulkheads.

Note:

  • When using the connection for 4G signals use an F to SMA adaptor on a flylead to mate with your 4 G Router.
  • A Wall plate connection is also enclosed if you have need to exit at a cupboard end and the wood is thicker and you need to cover a larger hole.
  • You will need a flylead to go from the second installed fitting to your TV.

Specifications

Specifications:

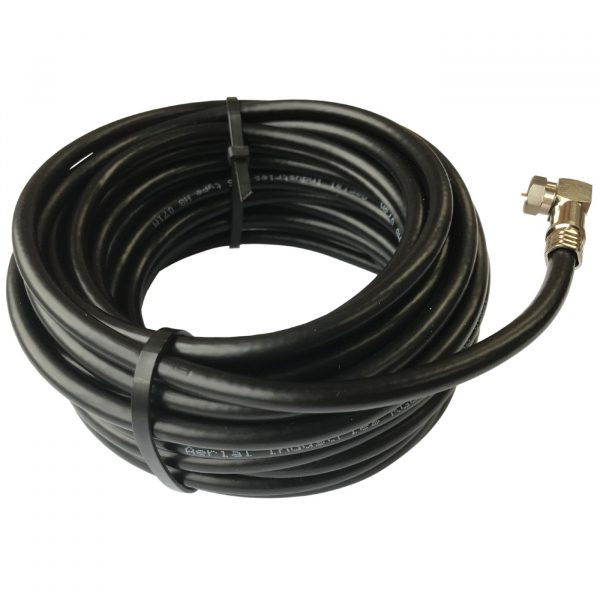

  • 6 meters commercial grade UV stabilised RG 6 GHz Duo cable fitted at one end with a right Angle F connector.
  • 3 Gig Hz F connector joiners complete with rubber washer and stainless-steel washer and Nickel F nut and star washer.
  • 3 GHz F Joiner extra Long – 60 mm.
  • Commercial grade twist on F connector – no special tools required.

Parts Included

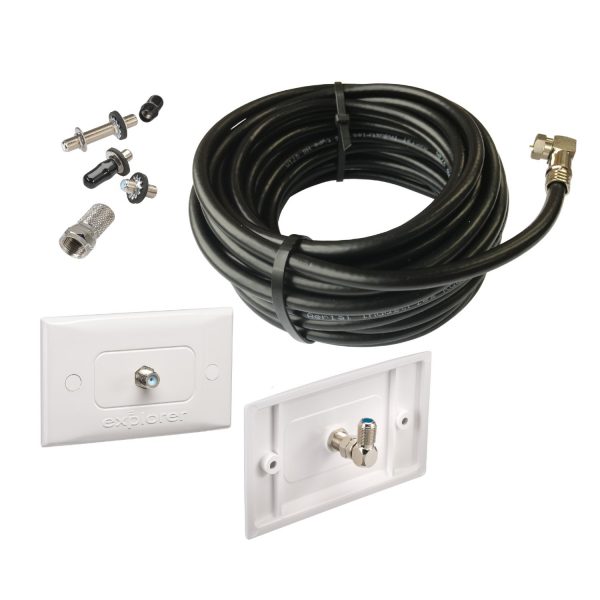

Parts Included:

  • 6 meters RG6 Duo cable fitted at one end with a Right Angle F connector.
  • 2 x PM8 through the (thin wall) or bulkhead connections.
  • 1 x PM8L extra Long F joiner – 60 mm.
  • 1 x PM4 internal wall plate outlet
  • 1 x twist on RG6 F connector connection.

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 0.4 kg
Dimensions 16 × 16 × 7.5 cm
