Campervan Thru-the-Wall Fitting for an external antenna point- ideal for Thin walls less than 3 mm

$11.71

Thru the wall connection Kit for thin walls – less than 3 mm.

Part Number:PM8-P

Brand: Report Abuse

Description

Campervan Thru the wall Fitting for an external antenna point- ideal for Thin walls less than 3 mm.

Campervan Thru the wall Fitting for an external antenna point Fitting is ideal for fiberglass or Thin walls such a Motor vehicle outer skin.

A Bulkhead fitting for a Wall thickness of less than 3 mm. No special tools needed.

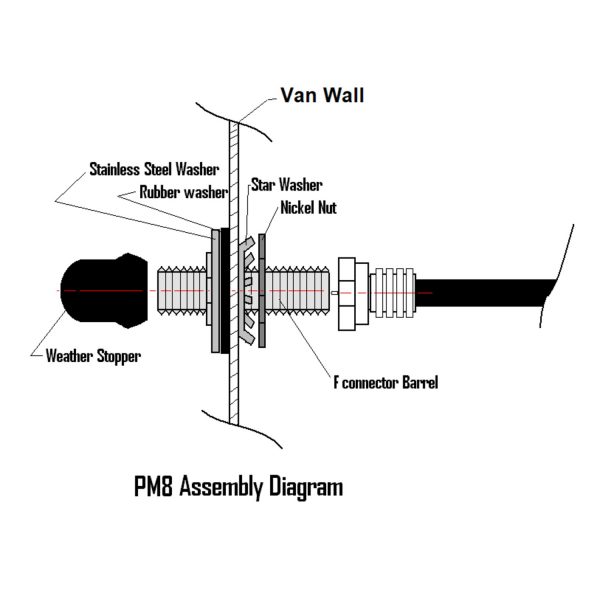

Use the fitting to bring the antenna signal in through the outer wall and into the vehicle and seal with the rubber and stainless washer – which can accommodate even a slightly curved wall without leaking.

Connect the cable and run to a viewing point. See our range of options for cable and connectors and internal fittings to complete your TV Antenna cabling and connection!

This is a useful fitting for vehicles such as Combi Vans, HiAce Camper trailers or Vehicles with a Fiberglass shell or at a bulkhead.

Note: Extensions or longer connections are available if you have a thin wall at only one end – see our full range.



Specifications

Specifications:

  • Wall thickness up to 3 mm.
  • Stainless steel external fittings.
  • Black UV stabilised Silicon rubber cable weather protection boot.
  • Rated frequency range: 45 MHz – 3 GHz.

Parts Included

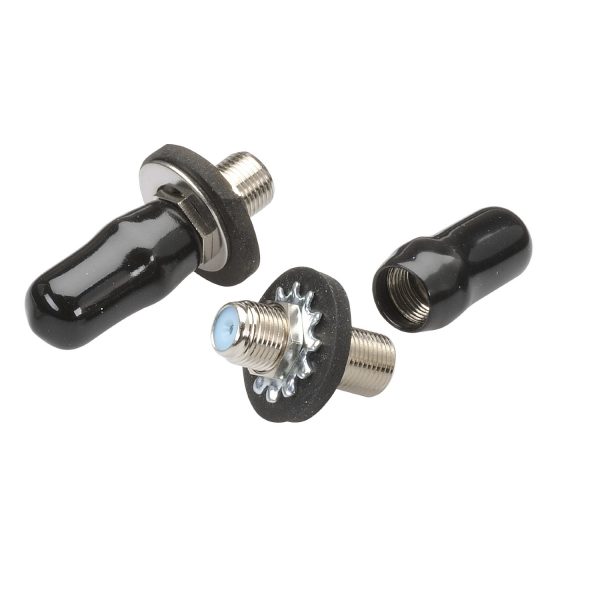

Parts Included:

  • “F” Joiner,
  • Rubber washer,
  • Stainless steel Flat washer,
  • 1 x Nickel F nut,
  • Star Washer,
  • Weather Boot.



Tutorials

…..

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 0.1 kg
Dimensions 11 × 6 × 6 cm
