Antenna Mounting Tile Roof Ridge Cap Mount

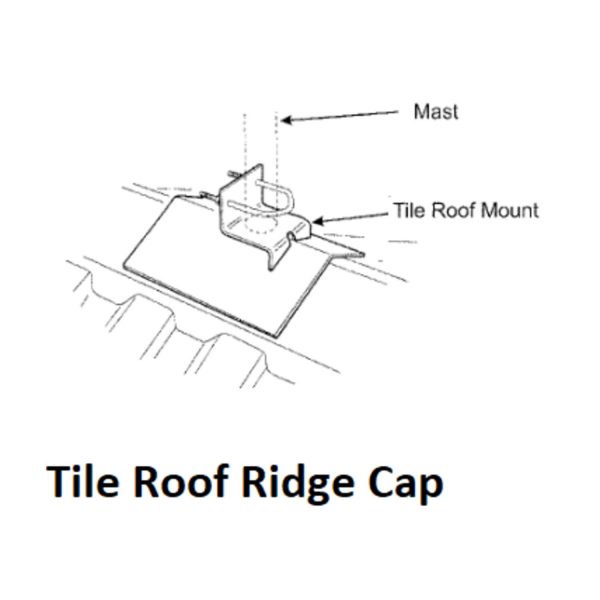

RTC drawing

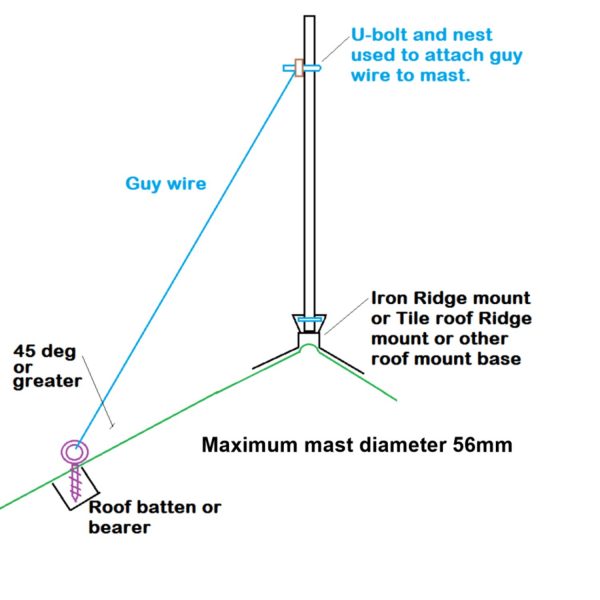

Angle of guy wire
angle of guy wire drawing
RTC package

Antenna Mounting Tile Roof Ridge Cap Mount – Galvanized

$46.28

Antenna Mounting Tile Roof Ridge Cap Mount – Galvanized

Part Number: RTC-P

Brand:
: Guying Catalogue SKU: G100-1011 Category:
Share this product!
Report Abuse

Description

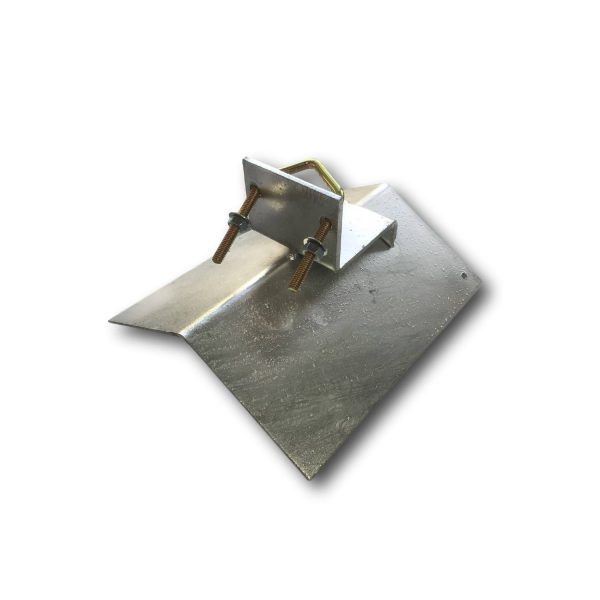

Antenna Mounting Tile Roof Ridge Cap Mount – Galvanized.

Antenna Mounting Tile Roof Ridge Cap Mount is Commercial grade fully Hot Dip Galvanised.

This mount provides the footing for the mast when mounting from a tile ridge cap.

Maximum Mast length available in our Masting section is 3.8 meters.

Note: Mast requires guying back to the roof. – see our Masting section and our Guying section for relevant products.

Specifications

  • Hot dip Gavanised Ridge cap.
  • Maximum pole dia is 56mm.
  • Angle under the peak of the mount is 120 degrees.

Parts Included

Parts included:

  • Tile Roof Ridge Cap- galvanised.
  • 1 x 5/16-inch medium U-Bolt.
  • 2 x 5/16-inch Nuts.
  • 2 x 5/16-inch Washers.

Tutorials







Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 1.2 kg
Dimensions 32.0 × 23.0 × 16.0 cm
