Home >> Shop >> Products >> TV Antenna Vertical or Stand Off Mount. Enables Vertical Mounting of Antenna.

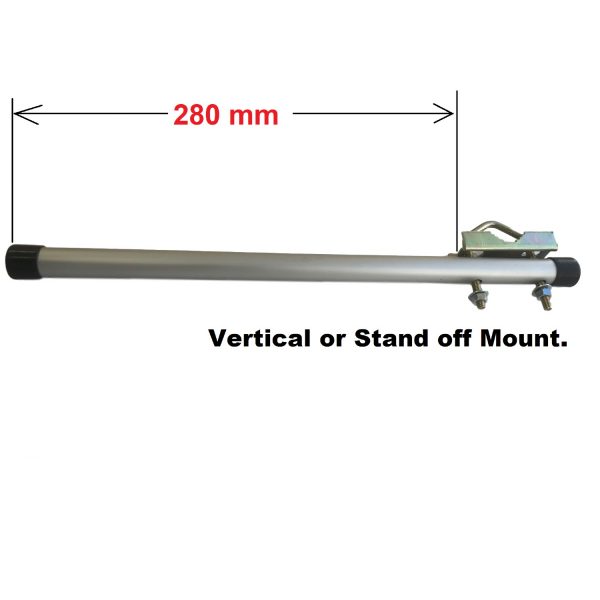

TV Antenna Vertical or Stand OFF Mount

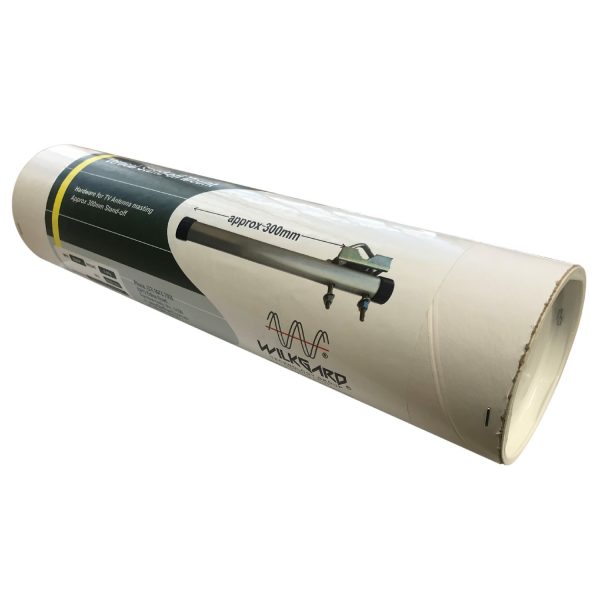

SOM package

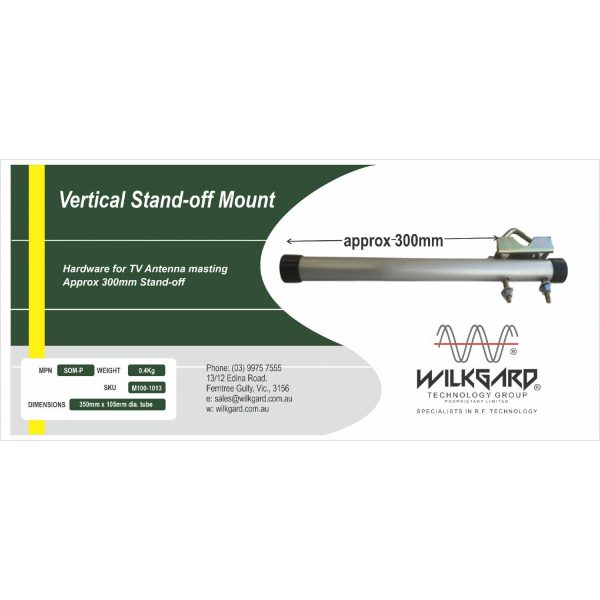

SOM label
  • TV Antenna Vertical or Stand OFF Mount
  • SOM package
  • SOM label
TV Antenna Vertical or Stand OFF Mount
  • TV Antenna Vertical or Stand OFF Mount
  • SOM package
  • SOM label

TV Antenna Vertical or Stand Off Mount. Enables Vertical Mounting of Antenna.

$44.18

Stand Off or Vertical Mount 400 mm x 25mm diameter Anodised Aluminium

Part Number: SOM-P

Inquire Now
Contact Us
Name
Name
Inquiry/Shipping Address
Brand:
: Mounts catalogues SKU: M100-1013
Categories: , ,

Description

TV Antenna Vertical or Stand OFF Mount, Coaxial cable RG6 Duo Male Twist On “F” connector – Suitable for DIY for the Home or Caravans.

TV Antenna Vertical or Stand OFF Mount any antenna to match the Transmitters vertical Polarity transmission.

Stand the antenna away from the mast to prevent signal bounce and interference.

Simply attach to the existing mast using the U bolts and nest and then attach your antenna in the vertical plane away from the mast pointed at the transmitter.

Easy to Install.



Specifications

Specifications:

  • 1 x 300 mm (from the edge of the V block) x 25mm with a 1.6mm wall thickness Aluminium Anodised pole.
  • UV stabilised Black Mast caps.
  • U-Bolt is Zinc plated and passivated.
  • Nuts and washers are Zinc plated.

Parts Included

Parts Included:

  • 1 x 300 mm x 25mm with a 1.6mm wall thickness Aluminium Anodised pole.
  • 2 x 25mm mast cap.
  • 1 x 5/16-inch Medium U-bolt.
  • 2 x 5/16-inch nut.
  • 2 x 5/16-inch flat washer

Tutorials

…..

Additional information

Weight 0.4 kg
Dimensions 35 × 11 × 11 cm
