Chimney Bracket Single Strap

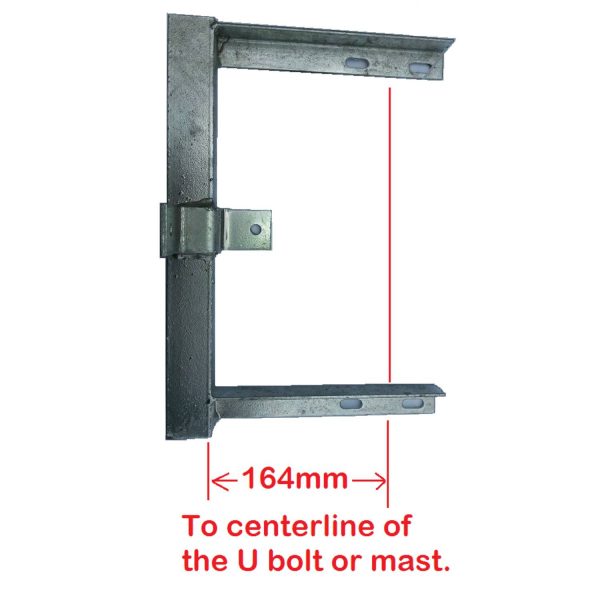

chimney bracket measurement

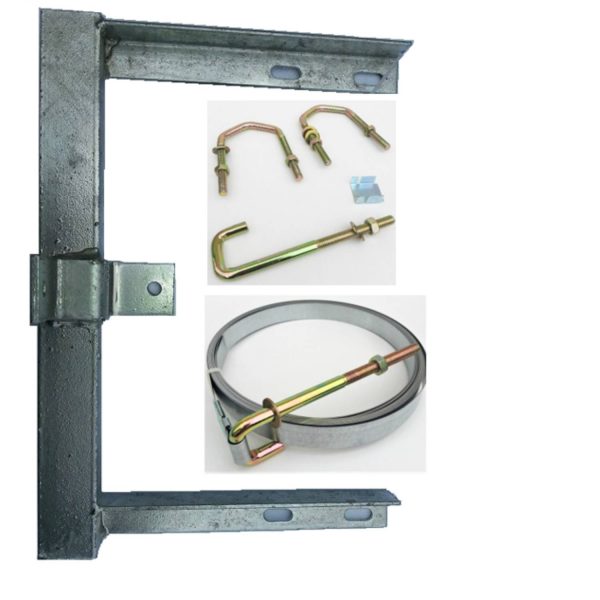

Single strap parts

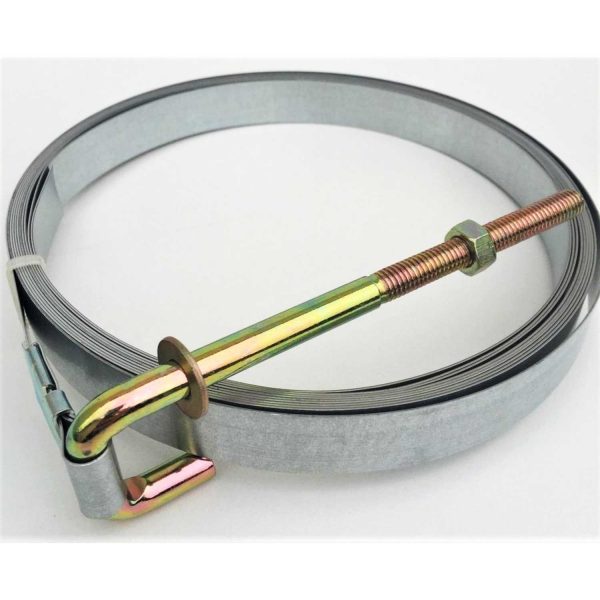

single strap

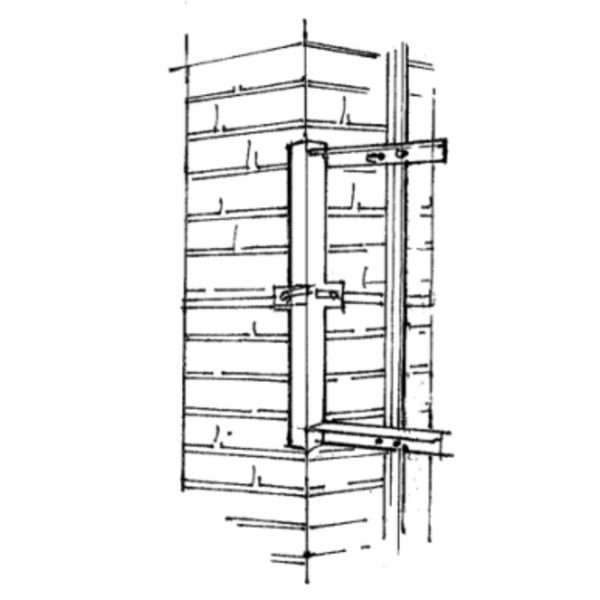

Single chimney bracket drawing

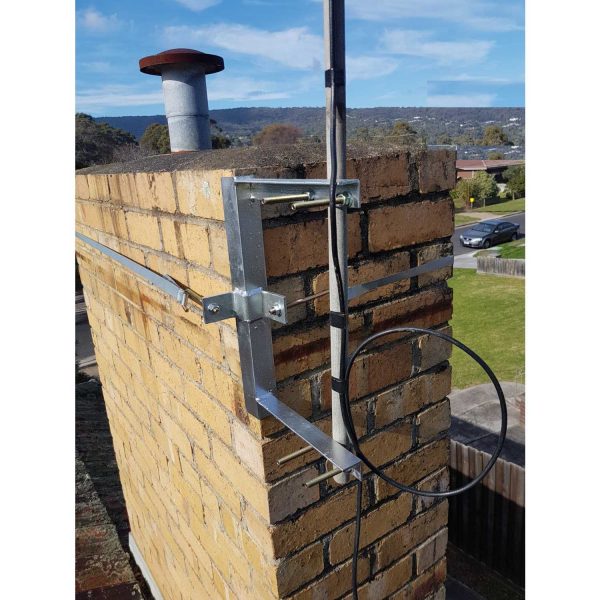

Single chimney bracket example
Single chimney bracket package

Galvanised Antenna Chimney Bracket Single Strap including all hardware


Single strap Chimney Bracket

Part Number: CHMKIT-P

Share this product!
Report Abuse


Chimney Bracket single strap with hardware and fixings.

Chimney Bracket Single Strap is ideal for a smaller mast on a shorter chimney.

Easy to install with only a single strap to locate and secure the bracket. The kit is complete with everything you will need to quickly install your mast and there are no special tools required.

The straps are 5 meters long plus an additional 5 cm reach on the J- bolts for a combined circumference of the chimney of up to 5050 mm.

If you require a longer mast consider our double bracket chimney mount for a wider load spread to better support longer masts.

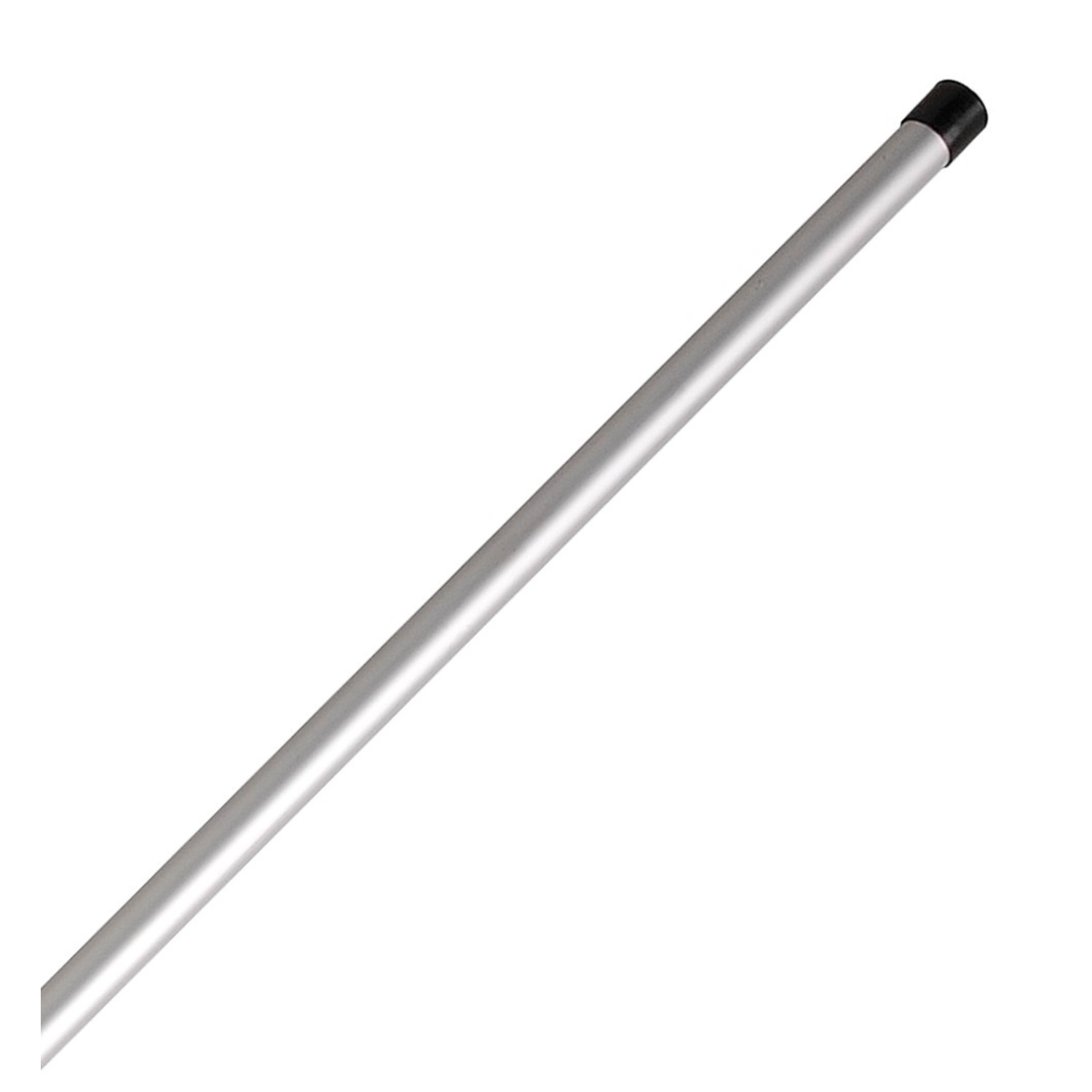

Use with your existing pole or mate with one of our lightweight extendable masts such as our 2000 mm to 2500 mm mast or our 2500 mm to 3500 mm Mast.  See our section on Masting.



Bracket dimensions and kit components:

  • 320mm Galvanised TV Antenna Chimney Bracket
  • 320mm between U bolts.
  • Complete with 5m strap, one end pre-sealed to a 5/16” J bolt.

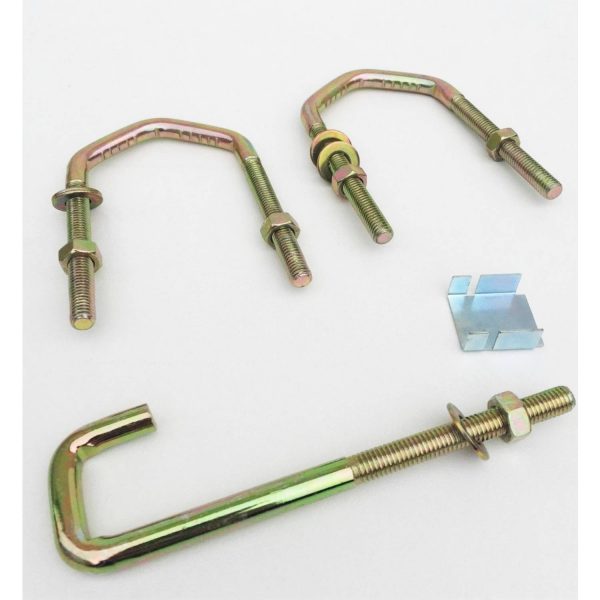

  • Another J bolt, strap seal, 5/16” U bolts, nuts and washers included. Supports two big antennas on mast up to 2.4m. Hot Dip Galvanized.

Parts Included

Parts Include:

  • 1 x Single strap Chimney bracket.
  • 1 x Complete with 5000 mm strap, one end pre-sealed to a 5/16” J bolt.
  • 1 x strap seal.
  • 1 x5/16-inch J bolt.
  • 2 x 5/16-inch medium U-bolts
  • 6 x 5/16-inch Flat washers.
  • 6 x 5/16 Nuts.



Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 2.6 kg
Dimensions 39.0 × 29.0 × 12.0 cm
