TV Antenna Aerial Adjustable mast from 3.5 to 5.2 Metres – lightweight Aluminium

$126.94

TV Antenna Aerial Adjustable mast  from 3.5 to 5.2 Metres – lightweight Aluminium MPN:

TM-3552-P



Brand:
SKU: M100-1052 Category:
Share this product!
Report Abuse

Description

Adjustable Antenna Mast – extends from 2500mm to 5200mm –

Adjustable Mast 2.5 to 3.5M – perfect for the DIY or Professional.

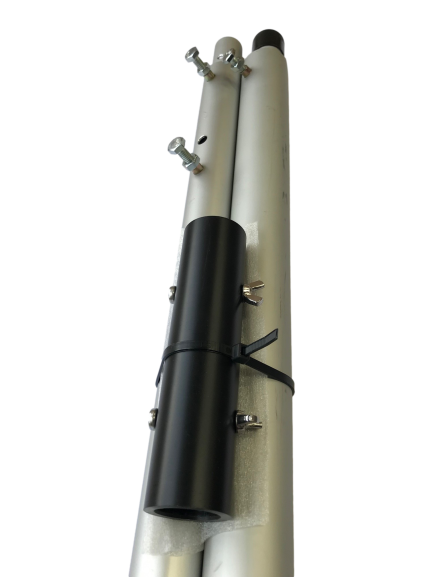

This lightweight Mast folds down for under shipping to 2.0 meters and so can be shipped easily across this vast country of ours.

Yet it is easily assembled and extends to a very useful height of up to 5.2 meters.

Use with any home or Commercial mounting in our range.

You don’t have to wrestle with an unwieldly heavy metal mast.

In addition, you can assemble the antenna and adjust the height for best position!

A very flexible and useful Mast.

Features:

  • Australian Made
  • TV Antenna Aerial Adjustable Mast from 3500 mm to 5200 mm.

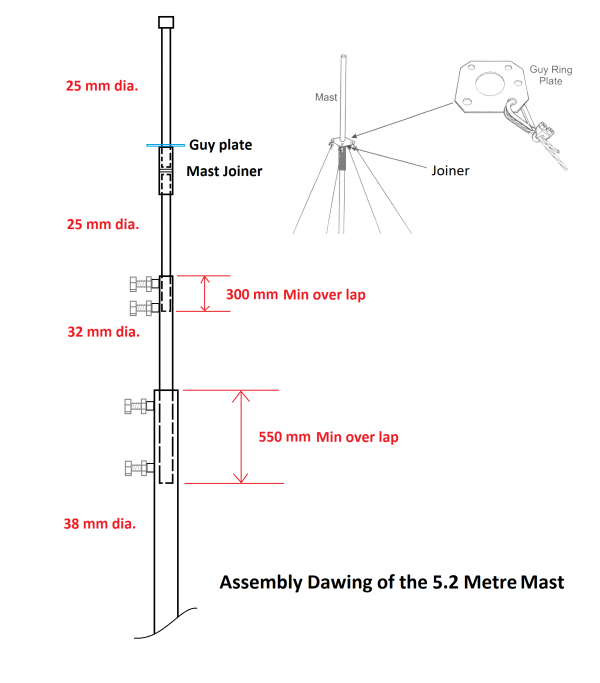

  • Lower Stage is 38mm Dia x 1500 mm, Middle Stage 32mm Dia x 1500 mm and the upper 2 stages are 25mm Dia x 1500 mm all Anodised Aluminium.

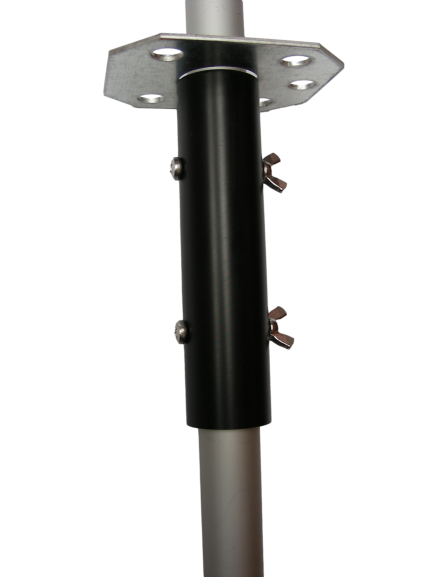

  • Comes with a rugged Black UV stabilised Acetal Plastic mast 25 mm joiner.

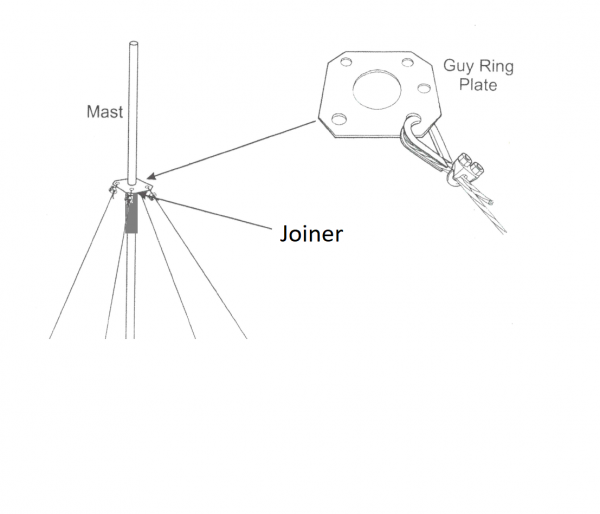

  • Includes a 32 MM guy plate to Guy from the mast joiner down to the ground for high stability of the Masting setup.

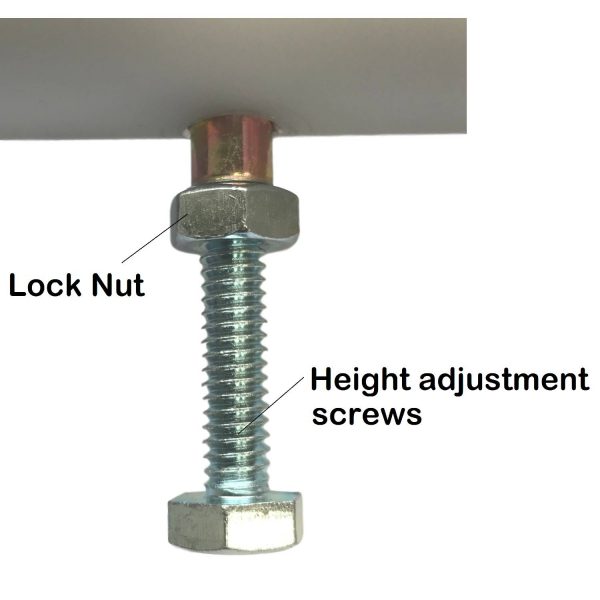

  • Light Weight Aluminium construction with wide spacing lock down Bolts for extra strength and very low flex.
  • Easy to use and features the ability to adjust your antenna height and direction to the perfect position after you have locked the base section in place!
  • Can be Paired with our other mounting products to complete any mounting requirements.

Specifications

Specifications:

  • 38 mm diameter 1st stage Anodised Aluminium mast tube.
  • 32 mm diameter 2nd stage Anodised Aluminium mast tube.
  • 25 mm diameter 3rd and 4 th stages Anodised Aluminium mast tubes.
  • Height range adjustment – 3.5 meters to 5.2 meters.
  • Zinc plated and passivated T nuts.
  • Zinc plated bolts.
  • Black Acetal
  • UV stabilised black plastic Mast cap

Parts Included

Parts Included:

  • 2 by 1500 mm x 25mm diameter anodised aluminium pole.
  • 1 by 1500 mm x 32mm diameter anodised aluminium pole.
  • 1 by 1500mm x 38mm diameter anodised aluminium pole.

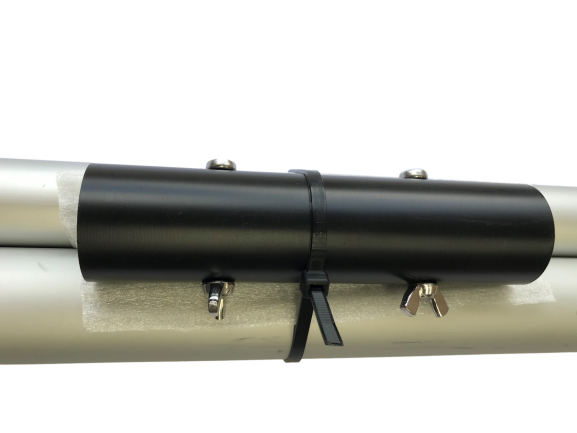

  • 1 by 25 mm mast Dia ACETAL Joiner.
  • 2 by 40mm x 5mm SST set screw.
  • 2 by 5 mm SS Wing Nuts Nuts.

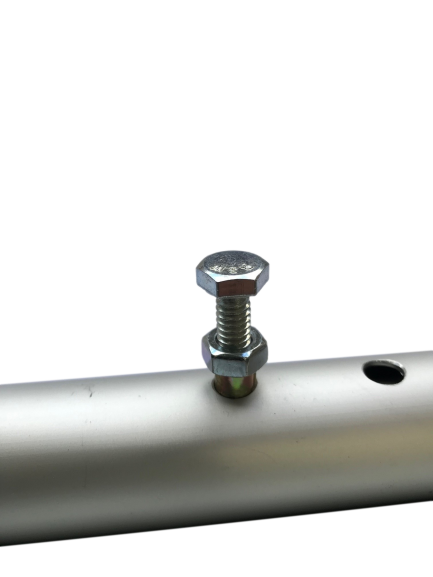

  • 2 by ¼ inch T -Nuts.
  • 4 by ¼ inch x 1-inch-long Hex head Setscrew ZP.
  • 4 x ¼ inch ZP nuts.
  • 1 by 32 mm Guy Plate.
  • Masting Instruction sheet.
  • 1 x 25mm Mast Cap.

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 3 kg
Dimensions 154.5 × 10.5 × 10.5 cm
