Stramit Roof Deck Galvanised Mount – Antenna Mounting Hardware

$67.81

Stramit roof Deck Galvanised Mount – Antenna Mounting Hardware

Part Number: STMDM-P

Brand:
Share this product!
Report Abuse

Description

Stramit Roof Deck Galvanised Mount – Antenna Mounting Hardware.

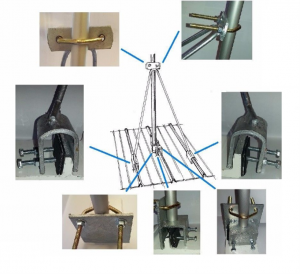

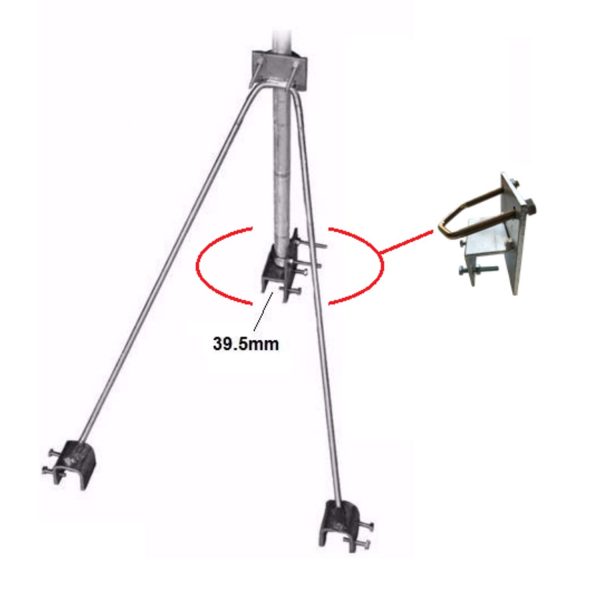

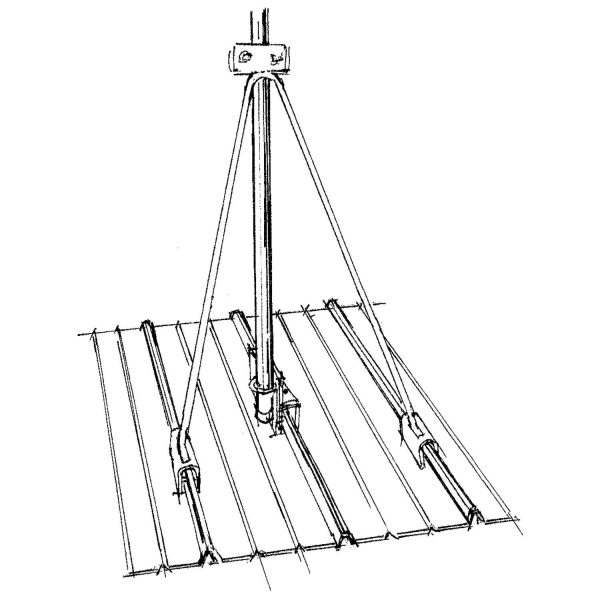

Stramit Roof Deck Galvanised Mount an easy-to-use Stramit flat deck roof mount that clamps around the vertical ridges in the roof design. This will provide a three-point attachment. Includes rubber strips to prevent damage to roof protective coatings.

So easy to install and can be adjusted to suit slight slope of roof where required – no special tools are required.

Match with a mast from our range up to 1.5 meters long without extra support.

See guying  in our range for added height masts.

Specifications

  • Decking Kit – Galvanised Stramit, Fits steel deck roofing with Wide Ribs. See images.
  • Hot dip galvanised makes mount long last for more than 25 years.
  • Maximum recommended height of mast without additional support is 1.5M (easy to fit)

Parts Included

  • Main Mounting frame comes with:

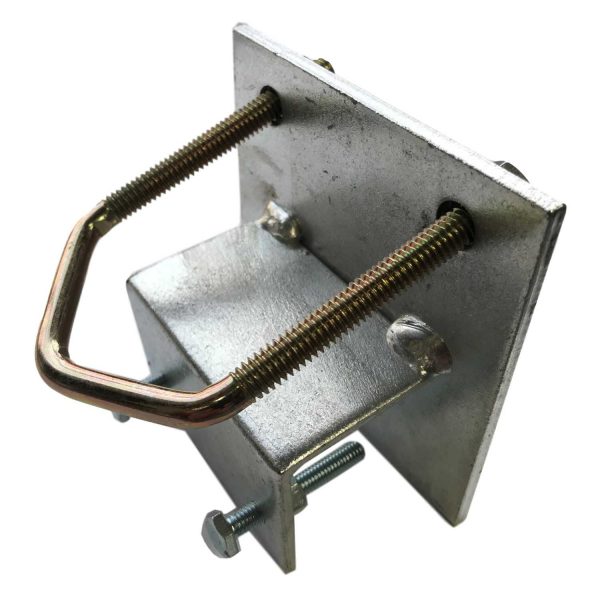

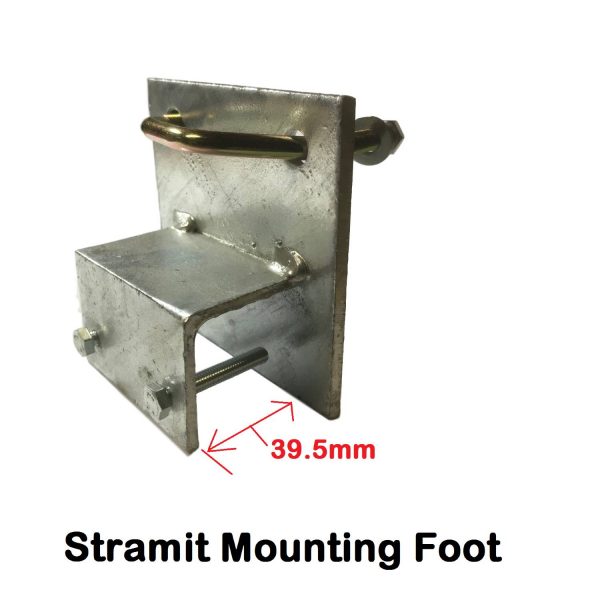

Decking Mast Foot stramit
6 by Nuts 6 mm
6 by 6mm dia. Bolts Hex Head 25mm
2 by Medium U-Bolt 5/16″
4 by Nuts 5/16″
4 by Washer 5/16″
3 by of rubber to cushion the bolts and prevent roof protective                        coating damage.

Tutorials

…..

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 2.5 kg
Dimensions 81.0 × 26.0 × 8.0 cm
