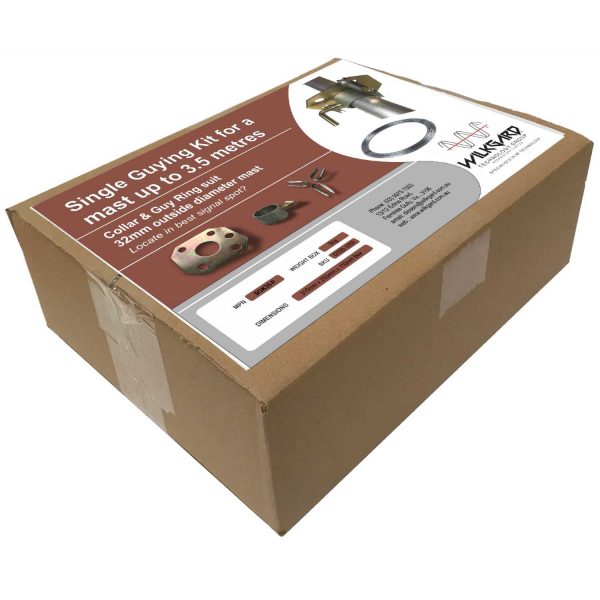

SGK35 package

Single Guying Kit for a mast up to 3.5 metre

$57.44

Single Guying Kit for a mast up to 3.5 meters

Part Number: SGK35-P

Brand:
: Guying Catalogue SKU: G100-1059
Category:
Share this product!
Report Abuse

Description

Single Guying Kit for a mast up to 3.5 meter and a diameter of 32 mm

Single Guying Kit for a mast up to 3.5 metre, when Installing the mast on a footing you will need to support the mast using Guy wires.

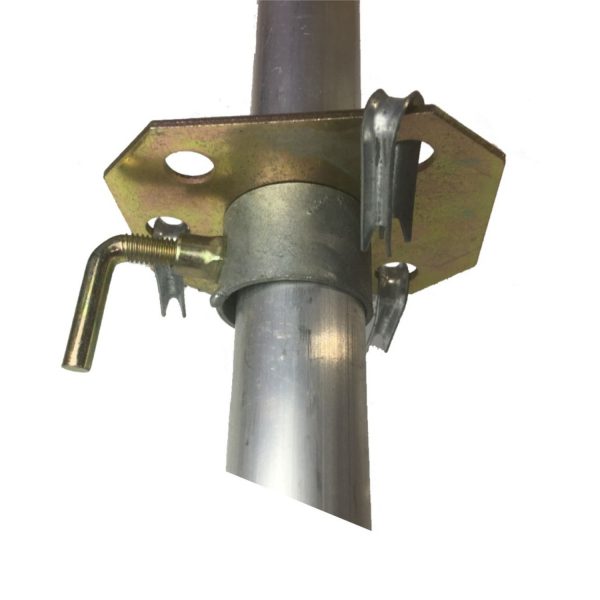

This Kit provides 30 meters of guy wire and guy collar and guying plate and three thimbles to properly allow guy wire attachment at the top of the mast.

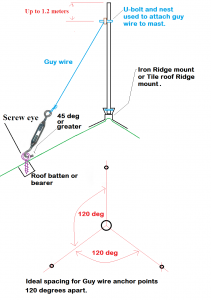

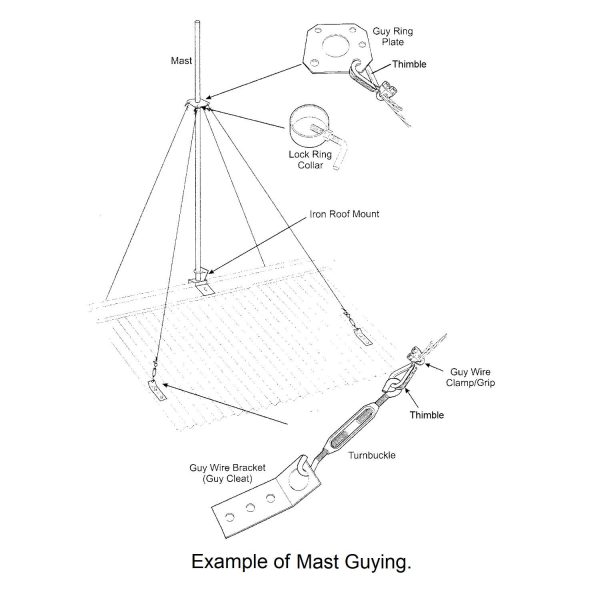

This is not difficult and you can see – by the image of a typical guying example above –  how this is basically achieved.

This Kit takes care of the parts required from the Mast down to the roof. All you need to do is match the fittings required to secure the guy wire to your roof with the those that suit your type of roof.

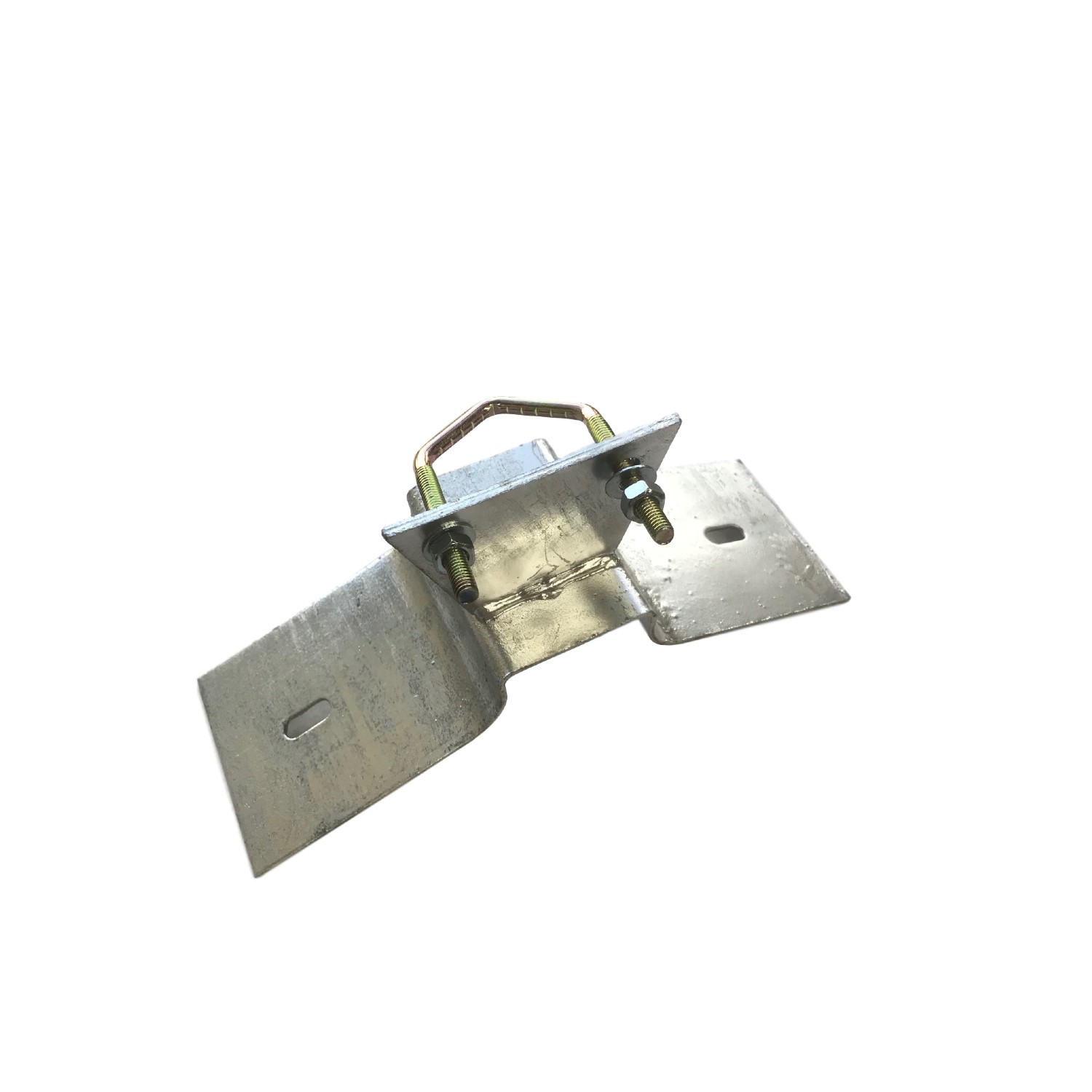

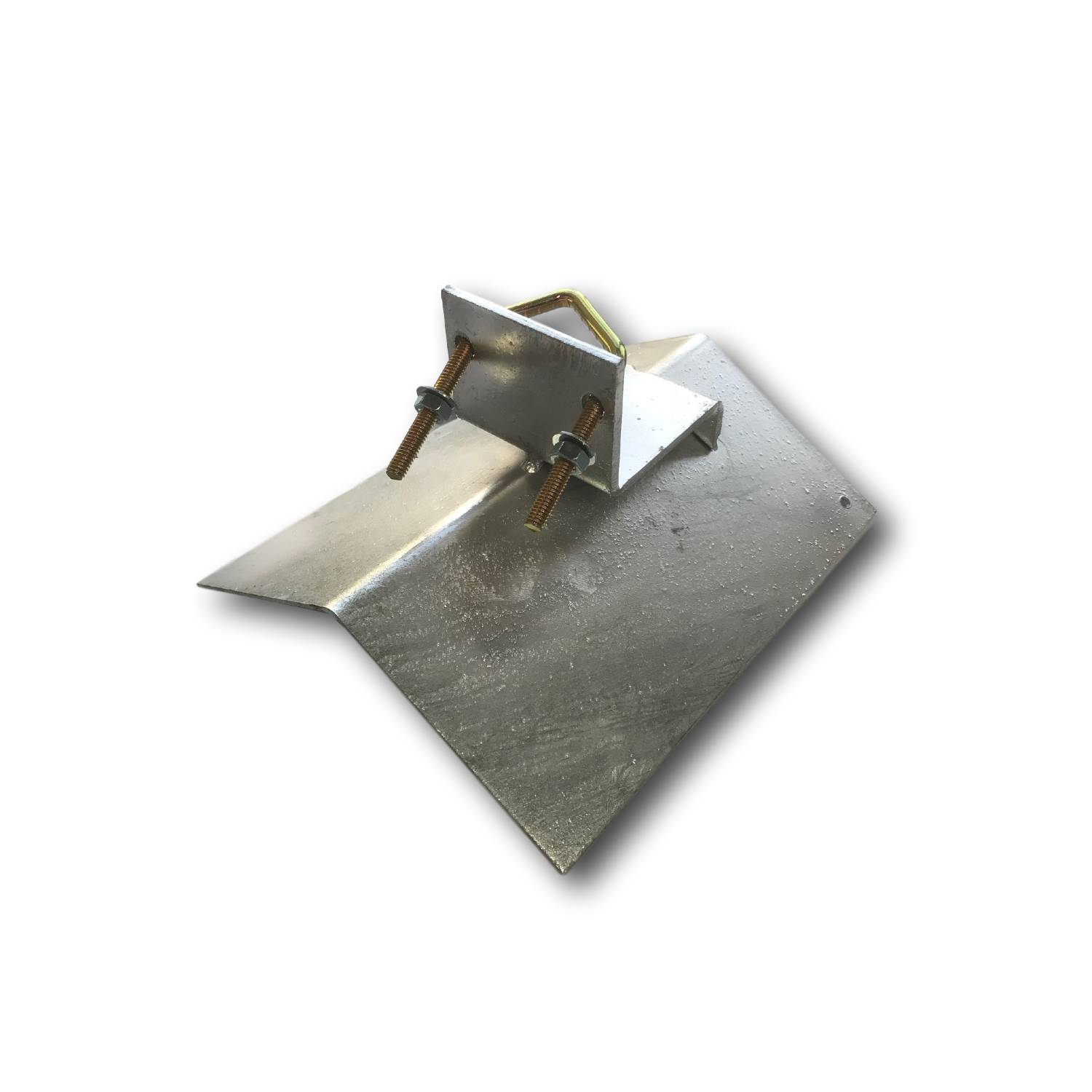

Choose your needed roof fixings for the guying wire to match your type of roof. See our range of ridge mounts and flat roof mounts to match your needs. See also our range of masts options to complete all you will need-just go to the roof type to see your options.

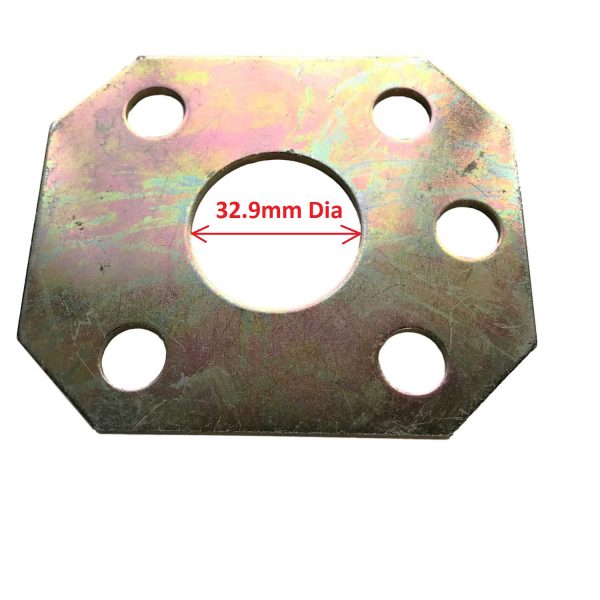

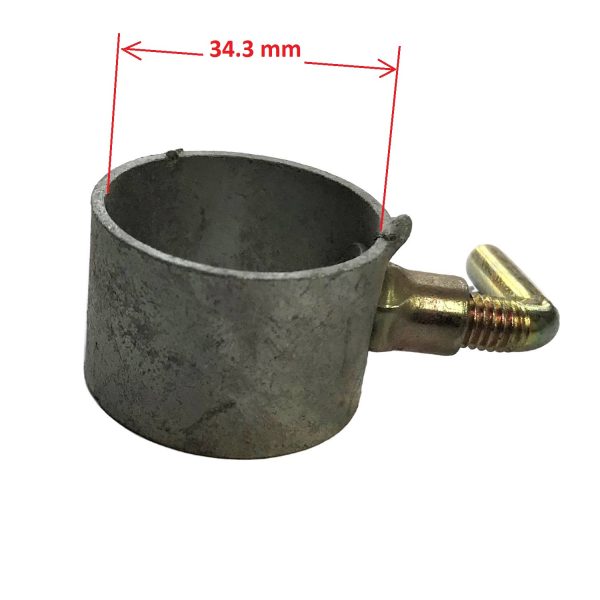

Note: Inner Diameter of Guy Ring 32.9 mm. Inner diameter of Guy Collar 34.3 mm.



Specifications

Specifications:

  • Guy Wire 30 metres  7 strands 0.9 mm

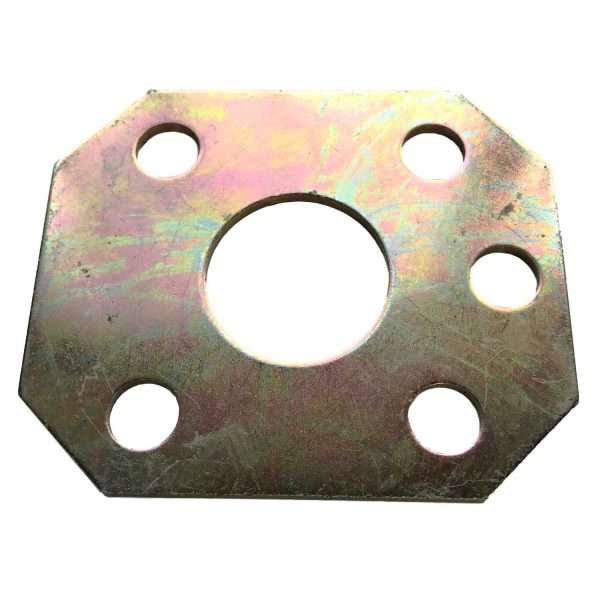

  • Guy Plate Zinc coated and passivated.

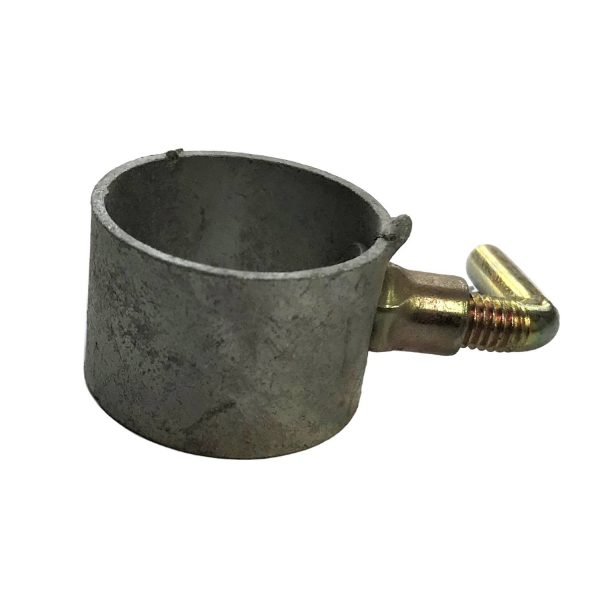

  • Guy Collar 32mm dia. zinc plated and passivated.

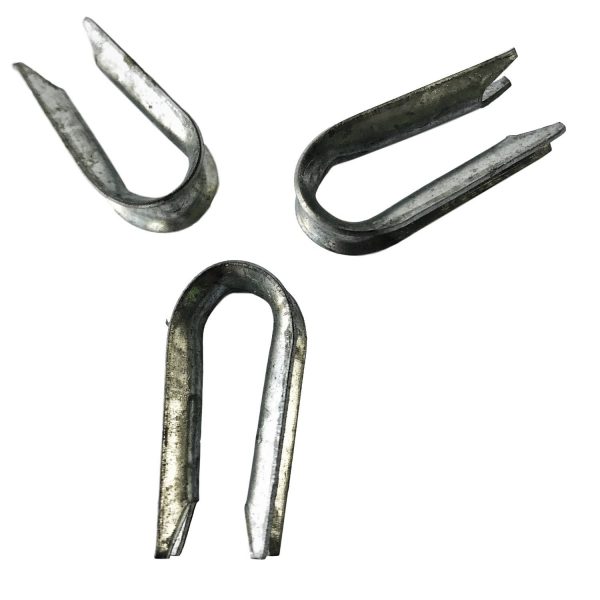

  • 3 x galvanised Thimbles

Parts Included

Parts Included:

  • A complete set of instructions.
  • 1 x 32 mm diameter collar to secure to the mast.
  • 1 x 32 mm guying plate
  • 3 x thimbles
  • 30 meters of guying wire.

Tutorials

…..

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 2 kg
Dimensions 32.0 × 25.0 × 11.0 cm
