RV, Caravan Antenna Point Thru-the-Wall Outlet Plate for the larger cavity Wall (25 mm to 38 mm)

$29.45

Passive Thru -the–wall Connection kit for larger Cavity wall.

Part Number:PC6C-P

Brand:
Share this product!
Report Abuse

Description

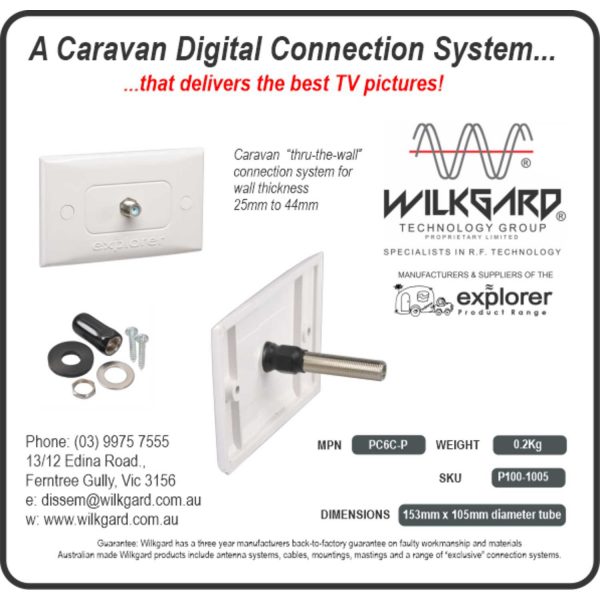

RV, Caravan Antenna Point is a Thru-the-Wall outlet plate for the larger cavity Wall

This RV digital connection Outlet wall Plate is designed to suit any caravan, mobile home, etc, for a TV antenna Point. It is designed to go straight from the inside wall to the outside wall eliminating the need and loss of extra cable and connections. This creates a much more reliable connection.

This is the Larger Cavity wall unit which suits:

  • Wall thickness between 25mm and 38mm.
  • Extensions are available to extend the length if required.
  • Passive Units can be used with an existing antenna or satellite and will pass power.

Note: A standard size wall cavity version is available – MPN: PC6A-P.

  • Suits wall thickness 20mm to 29mm.



Specifications

Specifications:

  • Wall thickness between 25mm and 44mm.
  • Stainless steel external fittings.
  • Black UV stabilised Silicon rubber cable weather protection boot.
  • Rated frequency range: 45 MHz – 1 GHz. Will function at high frequencies (up to 3 GHz) however, performance can reduce in the higher frequency range above the rated value.

Parts Included

Parts Included:

  • Passive through the wall connection kit.
  • Rubber washer
  • 3/8-inch ID to 3/4-inch OD Stainless steel Flat washer.
  • Stainless steel “F” nut.
  • Screw on Weather Stopper – Silicon Rubber outside and Metal threaded insert inside.
  • 2 x #6 x ¾ inch Panhead Philips Self tapping screws.
  • Full installation Instructions.

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 0.2 kg
Dimensions 11 × 11 × 16 cm

Instructions

C6A&PC6A and C -Instructions
