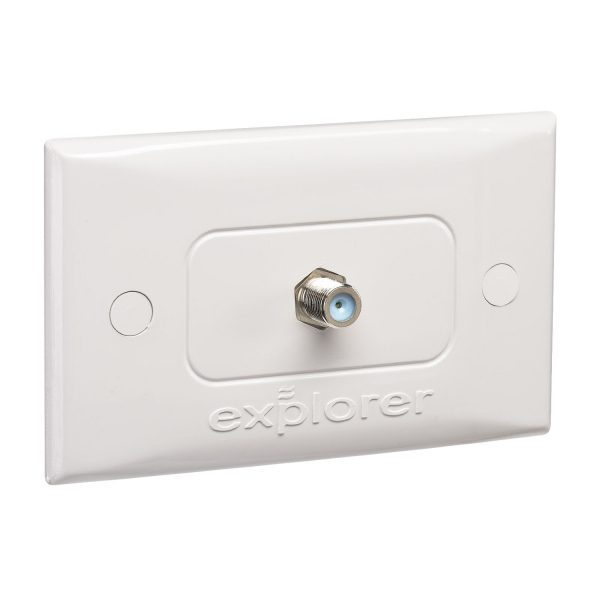

PC6A outlet plate

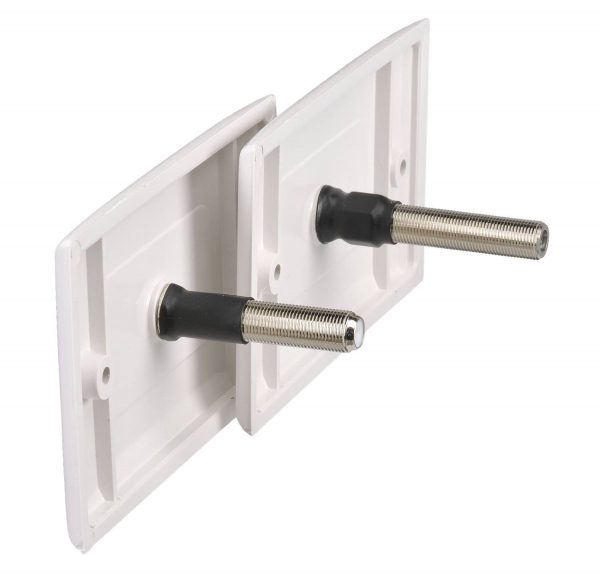

PC6A-and-PC6C passive connection kit

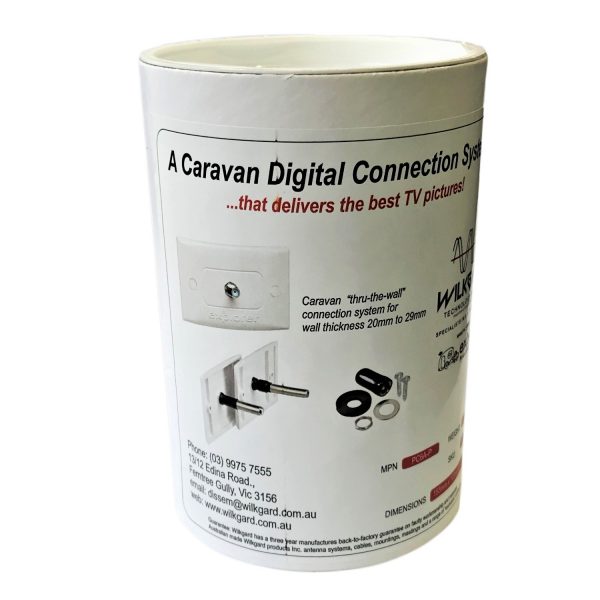

PC6A outlet plate package
PC6A or PC6C Wall Plate depth measurements
  • PC6A outlet plate
  • PC6A-and-PC6C passive connection kit
PC6A outlet plate
  • PC6A outlet plate
  • PC6A-and-PC6C passive connection kit

RV, Caravan Antenna Point Thru-the-Wall Outlet Plate for Wall Thickness of 20mm to 29mm thick.

$51.23

Passive Thru -the–wall Connection kit

Part Number: PC6A-P

Inquire Now
Contact Us
Name
Name
Inquiry/Shipping Address
Brand:
: Caravan TV Outlet Plates SKU: P100-1001
Categories: ,

Description

RV, Caravan Passive Antenna Point is a Thru-the-Wall outlet plate.

This RV digital connection Outlet wall Plate is designed to suit any caravan, mobile home, etc, for a TV antenna Point. It is designed to go straight from the inside wall to the outside wall eliminating the need and loss of extra cable and connections. This creates a much more reliable connection.

This is the standard size unit which suits: Wall thickness between 20 mm and 29 mm.

  • Extensions are available to extend the length if required.
  • Passive Units can be used with an existing antenna or satellite and will pass power.

Note: A larger wall cavity version is available – MPN: PC6C-P.

  • Suits wall thickness 25 mm to 44 mm.



Specifications

Specifications:

  • Wall thickness between 20mm and 29mm.
  • Stainless steel external fittings.
  • Black UV stabilised Silicon rubber cable weather protection boot.
  • Rated frequency range : 45 MHz – 3 GHz.

Parts Included

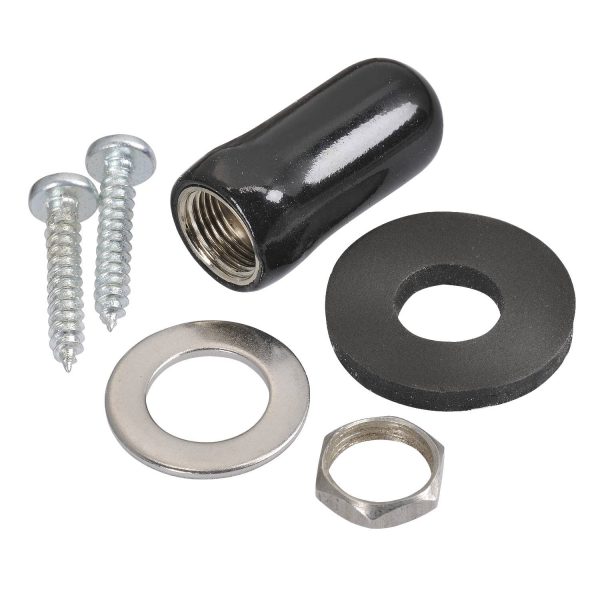

Parts Included:

  • Passive through the wall connection kit.
  • Rubber washer
  • 3/8-inch ID to 3/4-inch OD Stainless steel Flat washer.
  • Stainless steel “F” nut.
  • Screw on Weather Stopper – Silicon Rubber outside and Metal threaded insert inside.
  • 2 x #6 x ¾ inch Panhead Philips Self tapping screws.
  • Full installation Instructions.

Additional information

Weight 0.2 kg
Dimensions 11 × 11 × 16 cm

Instructions

C6A&PC6A and C -Instructions

You might also need ...

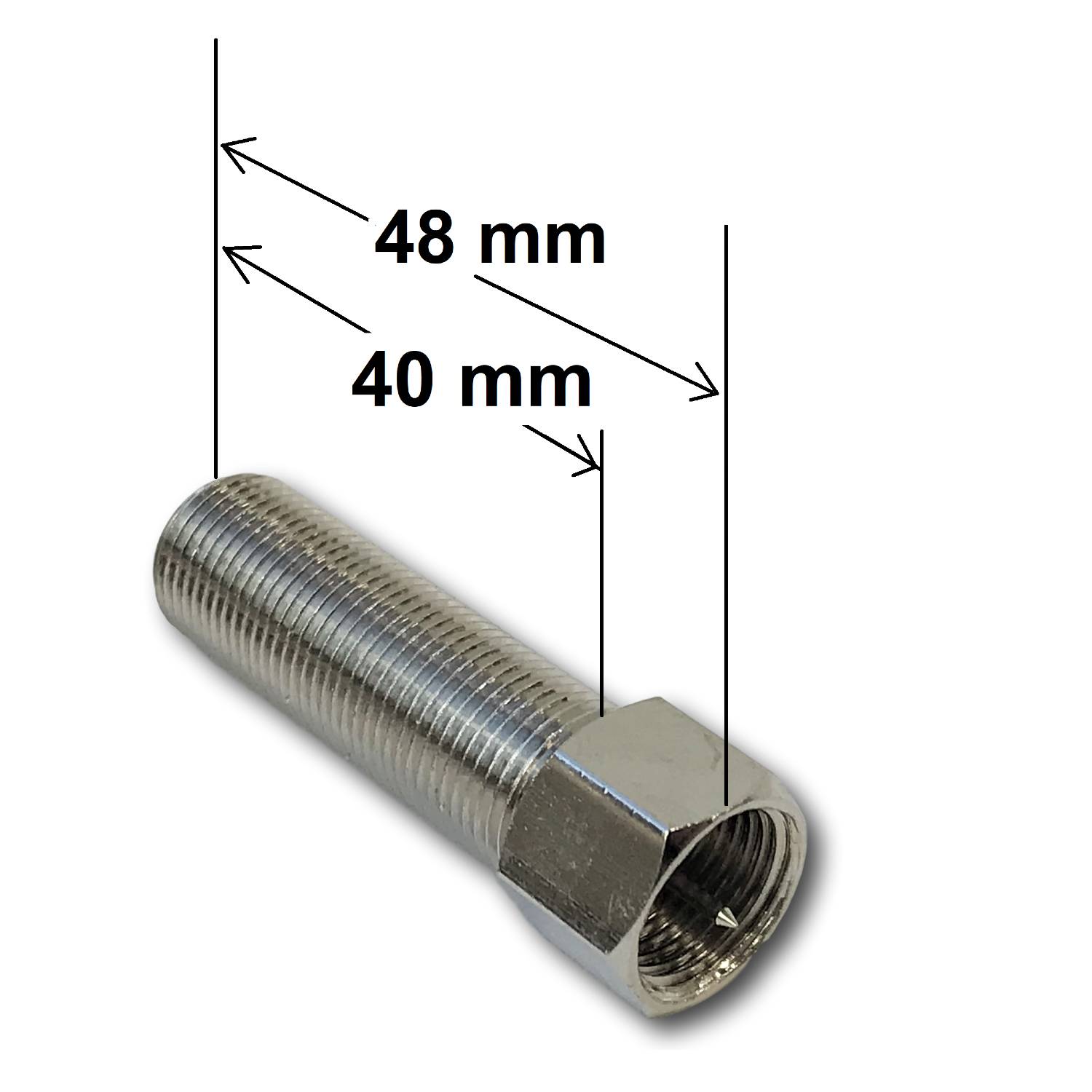

F connector extension 40mm

F Connector Extension 40mm- for Caravan Thru the Wall Kits or Thicker Bulk Heads.

$24.99
Brand:
View details and Raise inquiry
PC6A outlet plate

RV, Caravan Antenna Point Thru-the-Wall Outlet Plate for the larger cavity Wall (25mm to 38mm).

$52.73
Brand:
View details and Raise inquiry

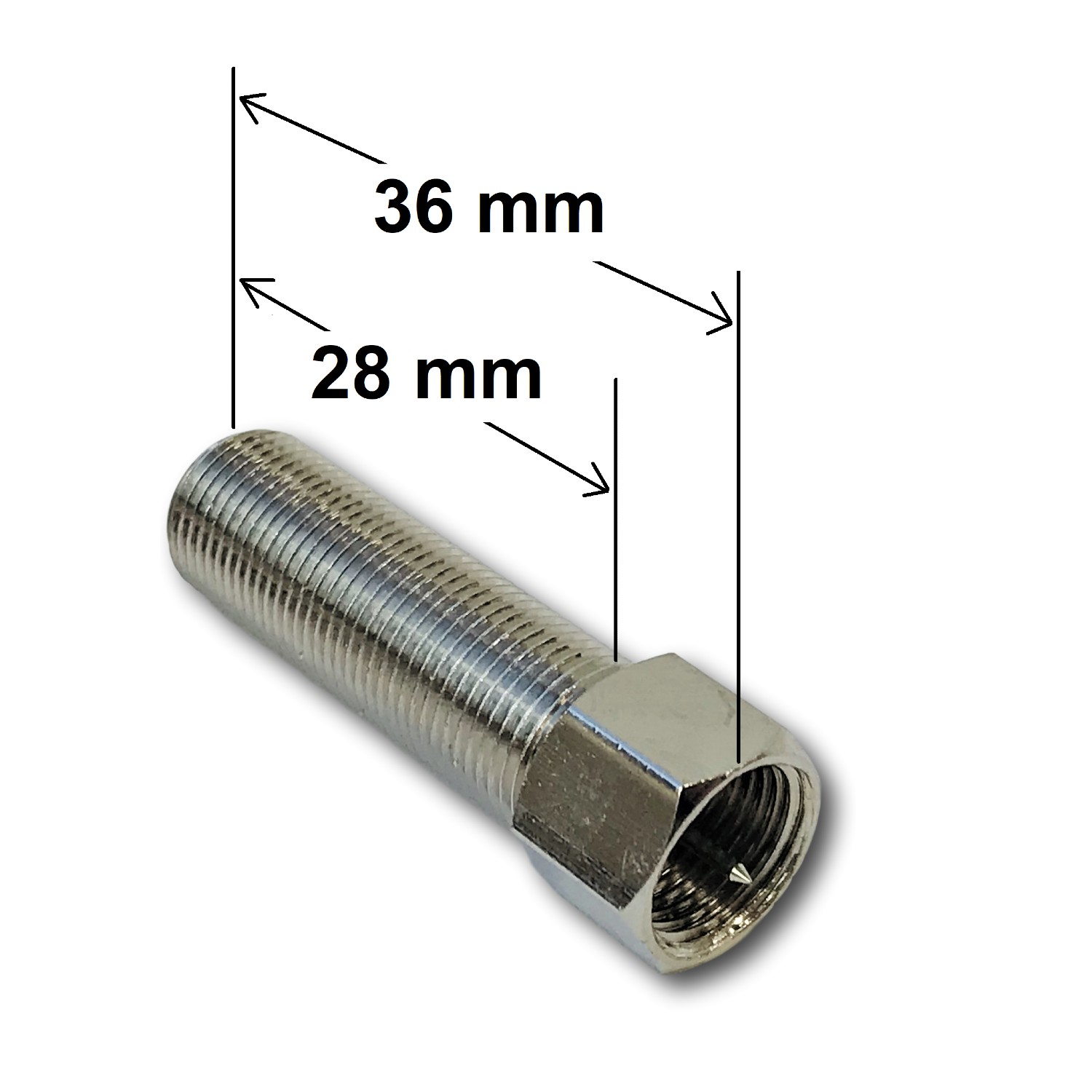

F connector extension 28mm
