RV, Caravan Antenna Point “Active” Thru-the-Wall outlet plate + Power supply

$86.22

Active Thru -the–wall Connection kit Plus 240Volt /12VDC power supply

Part Number: C6APS-P

Brand:
Share this product!
Report Abuse

Description

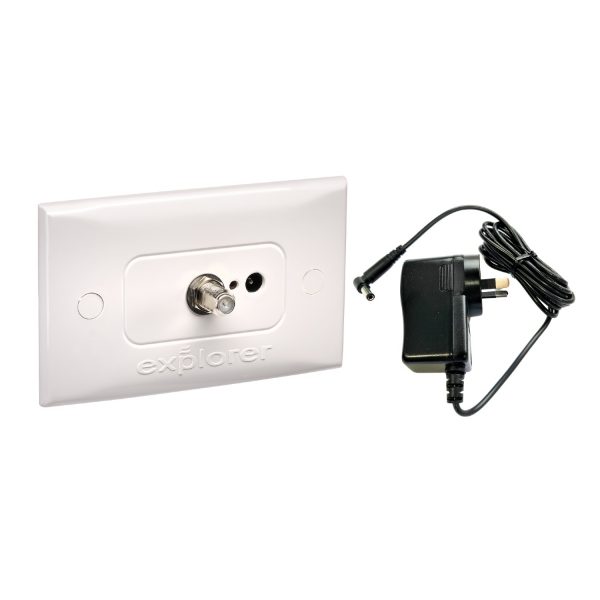

RV, Caravan Antenna Point “Active” Thru-the-Wall outlet plate + Power supply.

RV, Caravan Antenna Point “Active” Thru-the-Wall outlet plate + Power supply is designed to suit any caravan, mobile home, etc, for a TV antenna Point.

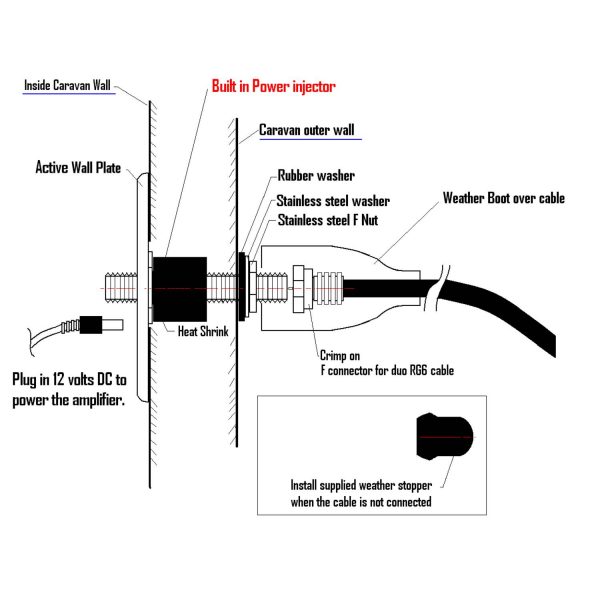

It is designed to go straight from the inside wall to the outside wall eliminating the need and loss of extra cable and connections. This creates a much more reliable and efficient connection.

This is an “Active” plate meaning it has a built-in power injector with noise reducing power supply filters and will handle low level signals with minimal loss or added noise. It is designed to power your mast head (booster) amplifier to a single point.

You can split the signal after the power injector or before, if using a power passing splitter –however be aware that splitting the signal to only one additional point always and with any system, does incur signal loss of approximately 3 dBuV. To more easily relate to this amount: a +3 dBuV of your signal would be a doubling of your signal strength. A -3 dBuV therefore is a halving of signal strength.

Also included is a 240 Volt AC to 12 Volt DC power supply suitable for devices up to a current draw of 500mA. It features a right-angle DC plug so that the cable sits close to the wall to keep it tidy.

This unit suits:

  • Wall thickness between 22 mm and 34 mm.
  • Extensions are available to extend the length if required.

Specifications

Specifications:

  • Wall thickness between 22 mm and 34 mm.
  • Stainless steel external fittings.
  • Black UV stabilised Silicon rubber cable weather protection boot.
  • Rated frequency range : 45 MHz – 1 GHz.
  • 12VDC input 500mA Built in Power Injector with Power supply noise filters built in.
  • DC socket is a 2.5 mm centre Pin and Centre Pin Positive.
  • 240VAC/12VDC 500 mA power supply with a center positive 2.5mm DC Plug.

Parts Included

Parts Included:

  • Active (with built in power injector) through the wall connection kit.
  • 1 x 240VAC/12VDC 500 mA power supply with a 2.5 mm DC socket.
  • Rubber washer
  • 3/8-inch ID to 3/4-inch OD Stainless steel Flat washer.
  • Stainless steel “F” nut.
  • Screw on Weather Stopper – Silicon Rubber outside and Metal threaded insert inside.
  • 2 x #6 x ¾ inch Panhead Philips Self tapping screws.
  • Full installation Instructions.

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 0.3 kg
Dimensions 11 × 11 × 16 cm
