Passive TV outlet for External wall. Mounts from Inside the Wall at Manufacture or with a Plate at Repair.

$15.41

PM6-P Caravan External Wall TV Connection

Brand:
SKU: P100-1018 Categories: ,
Share this product!
Report Abuse

Description

This RV digital external Outlet connection is designed to suit any caravan, mobile home, etc, for a TV antenna Point, FM radio or satellite Connection.

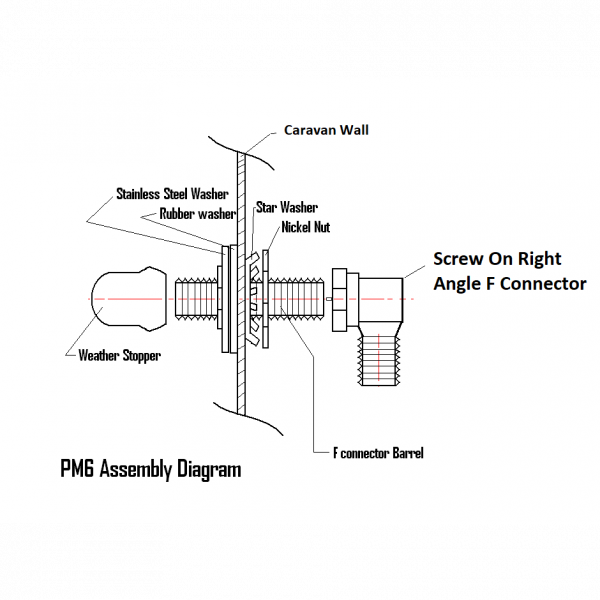

It is designed to be installed inside the wall at manufacturer and the cable run to an internal TV point at some other area of the Van or a splitter for multiple points.

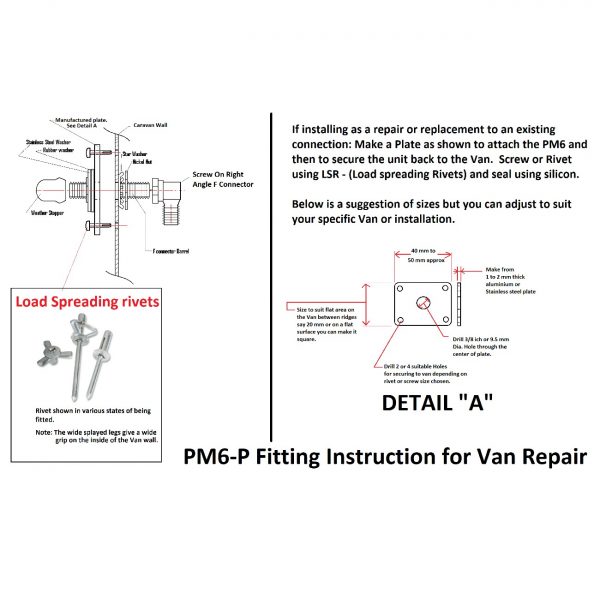

If you have an existing cable to an external point and you need to replace the old rusty push in fitting with a Digital non corroding F connector then this is ideal. In this case – during a repair to an existing installation – attach to a small plate and then eth plate is secured to the Van Wall for a high-quality connection

Just cut a suitable square or rectangle whatever best suits your van profile) of sheet aluminium that fits your Van profile and drill a 3/8 hole in the centre. Then you can screw and glue that plate back to cover the external hole left by the removal of the old fitting.

Specifications

Specifications:

 Wall thickness minimum of 25mm.

  • Stainless steel external fittings.
  • Black UV stabilised Silicon rubber cable weather protection boot.
  • Rated frequency range: 45 MHz – 1 GHz. Will function at high frequencies (up to 3 gig hertz) however, performance can reduce in the higher frequency range above the rated value.

Parts Included

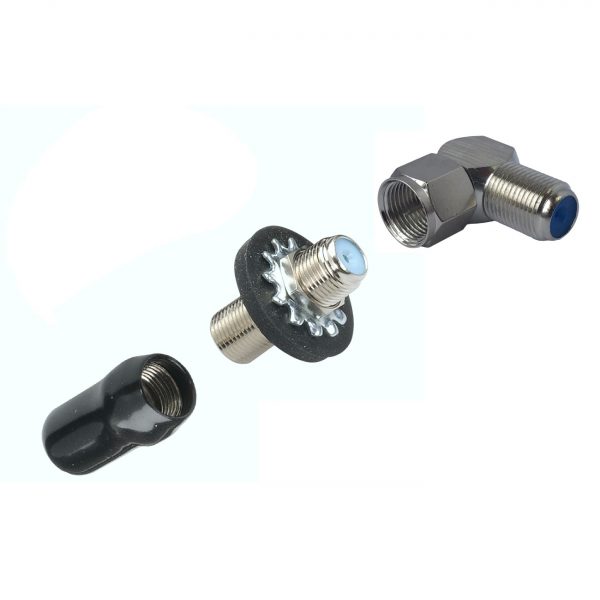

Parts Included:

  • F connector Long Joiner – 3 GHz.
  • Rubber washer.

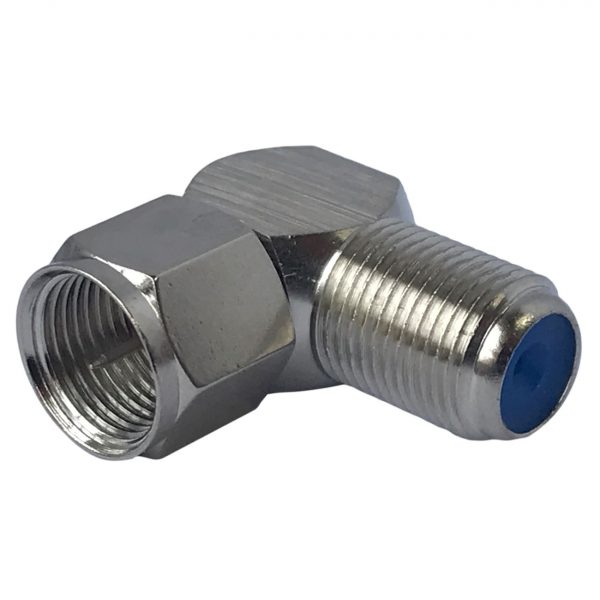

  • Screw On Right Angle F Connector
  • 3/8-inch ID to 3/4-inch OD Stainless steel Flat washer.
  • Nickel “F” nut.
  • 3/8-inch star washer.
  • Screw on Weather Stopper – Silicon Rubber outside and Metal threaded insert inside.
  • Full installation Instructions.

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 0.2 kg
Dimensions 5.5 × 5.5 × 15.4 cm
