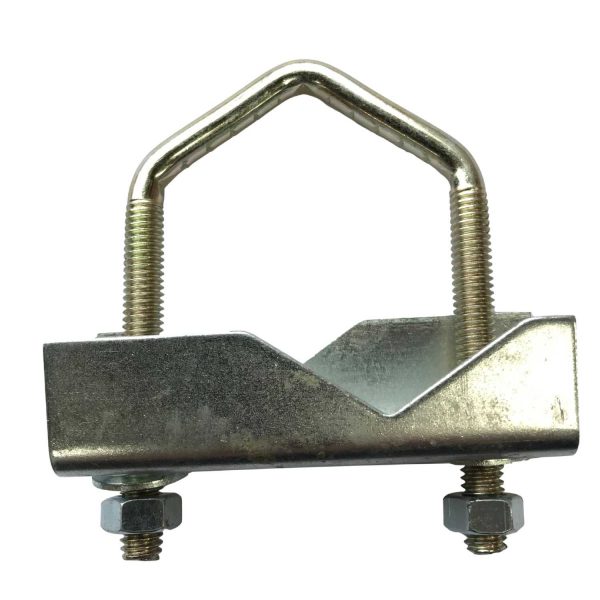

Offset V Block And U-Bolt

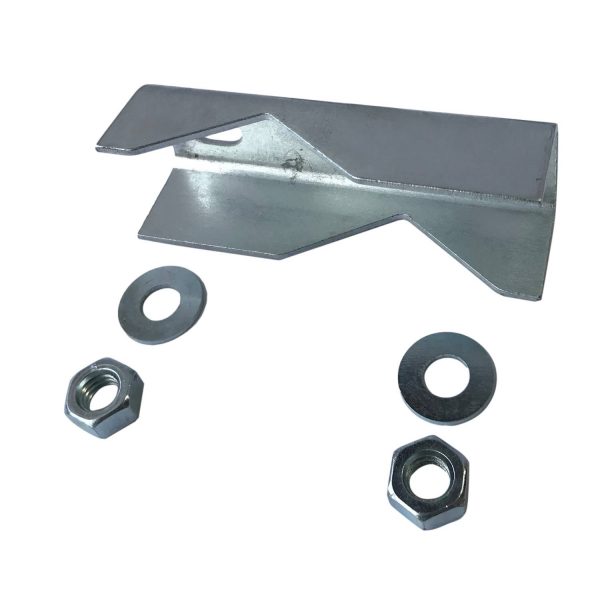

VB Offset 3 nuts a v block

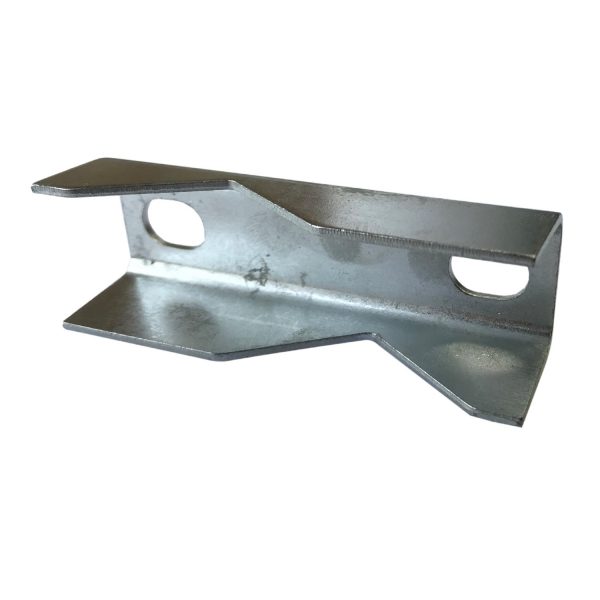

Offset V block

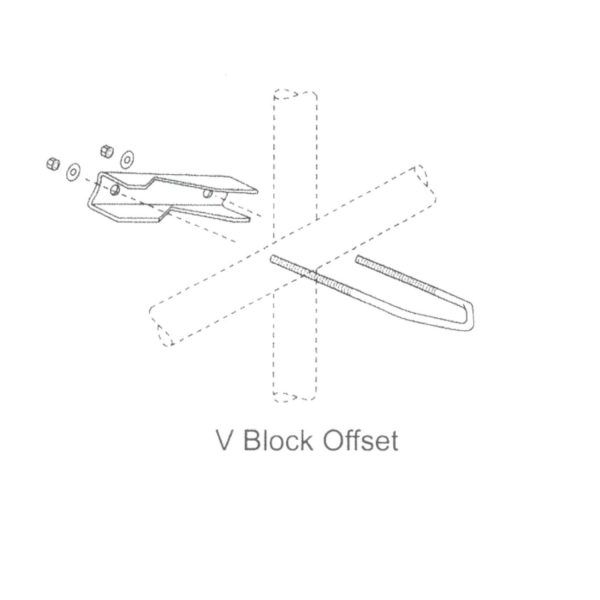

Typical Use v blck offset

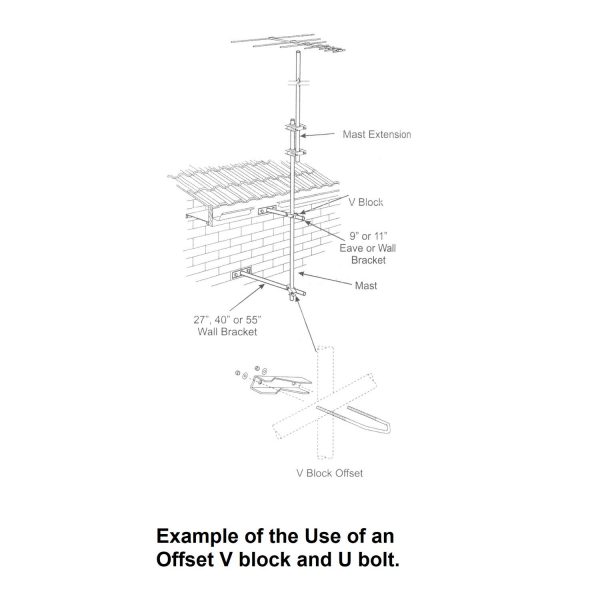

example of an Offset V block and nest

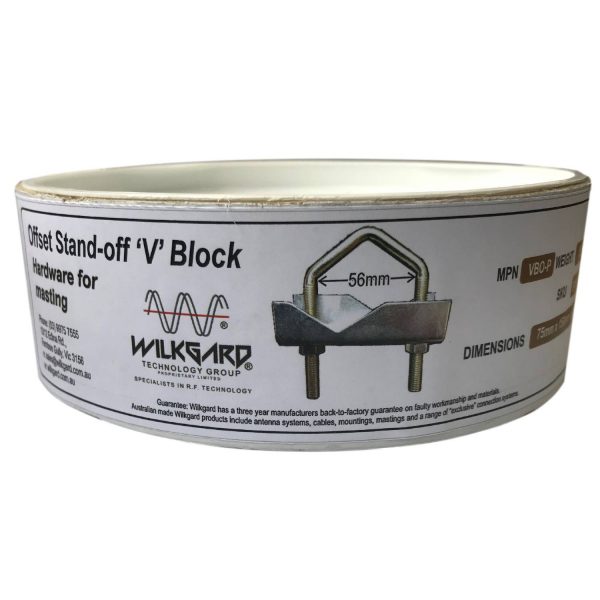

U bolt and Offset V block packaged
  • Offset V Block And U-Bolt
  • VB Offset 3 nuts a v block
  • Offset V block
Offset V Block And U-Bolt
  • Offset V Block And U-Bolt
  • VB Offset 3 nuts a v block
  • Offset V block

Offset V Block And U-Bolt Hardware for TV Antenna masting

$14.67

Offset V block and U-bolt – Hardware for TV Antenna masting

Part Number:  VPO-P

Brand:
: Download the broacher SKU: S100-1009 Category:
Share this product!
Report Abuse

Description

Offset V Block And U-Bolt Hardware for TV Antenna masting.

Use Offset V Block And U-Bolt component to lock a horizontal 25 mm bar to a vertical 25 mm bar as shown in the drawing.

This product is used with Eave mounts and where you want to adjust the position of one of the mounted ends.

Simply slide the Vertical mast along the horizontal Eave Mount until the required position is reached to allow the mast to align with the top mount.



Specifications

Specifications:

  • 1 x 5/16-inch U bolt Medium length Zinc Plated and Passivated.
  • 2 x 5/16-inch Nuts Zinc plated.
  • 2 x 5/16-inch Flat washers. Zinc Plated.

Parts Included

Parts Included:

  • 1 x 5/16-inch U bolt Medium length.
  • 2 x 5/16-inch Nuts.
  • 2 x 5/16-inch Flat washers.

Tutorials

…..

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 0.35 kg
Dimensions 16 × 16 × 7.5 cm
