Mounting KIT TV Antenna Wall/Gable End Mount 279mm – Galvanised

$32.45

279mm Wall Mount with a standoff of 196mm

Part Number: WEM-279 -P

Brand:
Share this product!
Report Abuse

Description

 Wall/Gable End Mount 279mm,  Mounting kit – Galvanized.

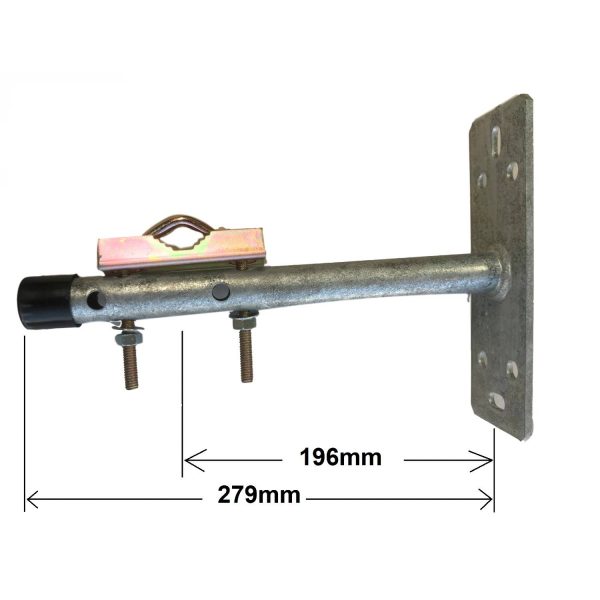

Wall/Gable End Mount 279mm is a strong and sturdy single Eave or Wall mount. Use it to support a Mast at one point. Distance from the wall to the centre of  the mast  is 196mm.

Use with an additional unit or where pole is mounted at the base by some other means.

See our additional wall mount product range for additional hardware or options.

Specifications

  • TV Antenna Aerial Wall Mount 279mm overall length
  • Hot Dipped Galvanized.
  • 1 by 279mm x 25mm Fitted with V block and U Bolts.
  • 196 mm to centre of U Bolt as per
  • Maximum pole diameter is 40mm





Parts Included

1. Eave mount 279mm long.
2. 5/16-inch medium U-Bolt.
3. 2 x 5/16-inch Nuts and washers.
4. 25mm Mast Cap

Tutorials

…..

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 1.1 kg
Dimensions 32.0 × 24.0 × 11.0 cm
