Explorer Quick Fix Update Kit for Mast Pole. For Caravan, Campervan, Trailer, Houseboat.

$101.87

Explorer Quick Fix Update Kit for Mast pole Caravan Campervan Trailer Houseboat

Part Number: QFUD-P

Inquire Now
Contact Us
Name
Name
Inquiry/Shipping Address
Brand:
: Mounts and Brackets for Caravans and Home SKU: M100-1006
Categories: ,

Description

Explorer Quick Fix Update Kit for Mast dia of 32mm for Caravans, Campervans, Trailers and  Houseboats.

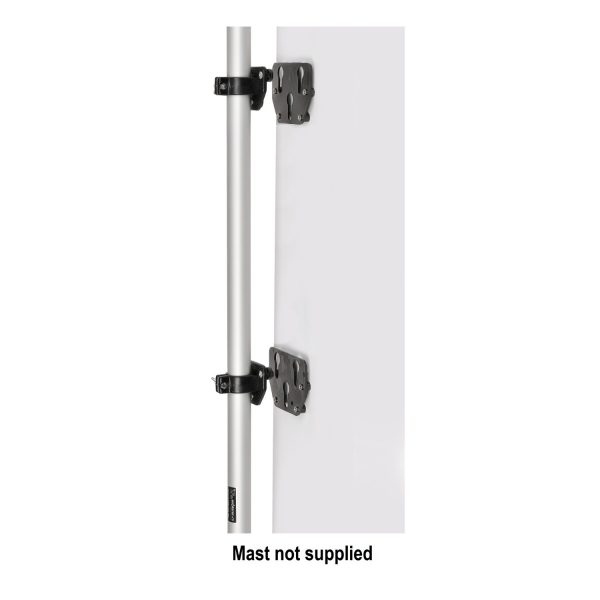

If you have a 32mm diameter mast, then this kit updates it to a quick release side mounted mast system for easy antenna removal and adjustment.

Explorer Quick Fix Update Kit contains all you will need. including full fitting instructions.

Technical support is available for the life of the product.

Specifications

  • All supplied fixings are stainless steel or aluminium for their anti-corrosion properties.
  • All plastic components are made from black UV stabilised plastic.
  • Full fittings instructions are supplied see “Tutorials”.



Parts Included

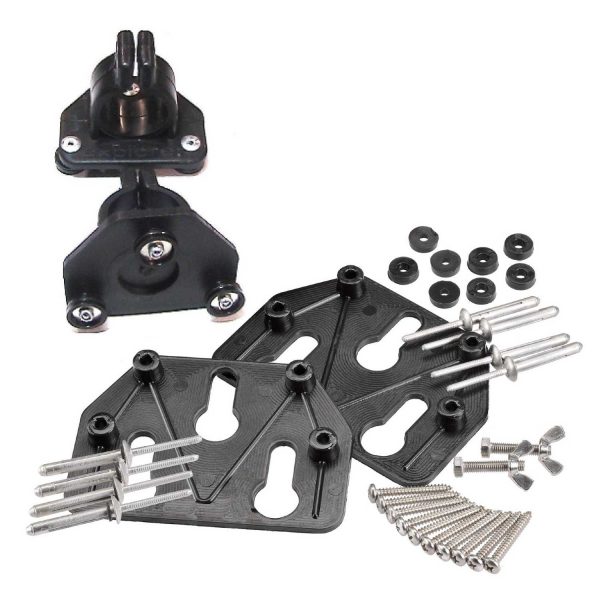

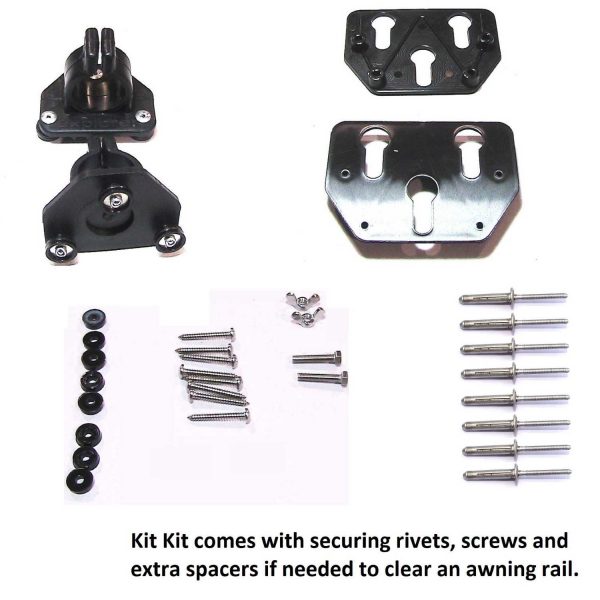

Parts included:

  • 2 x Side Mounts with attached mounting Feet (3 on each), Riveted on.
  • 2 x Quick Release Brackets.
  • 8 x Plastic spacers.
  • 8 x #8 x 1 ¼ inch stainless steel screws.
  • 2 x 5mm Stainless Steel Wing Nuts.
  • 2 x 5mm x 25mm Hex head Screws.

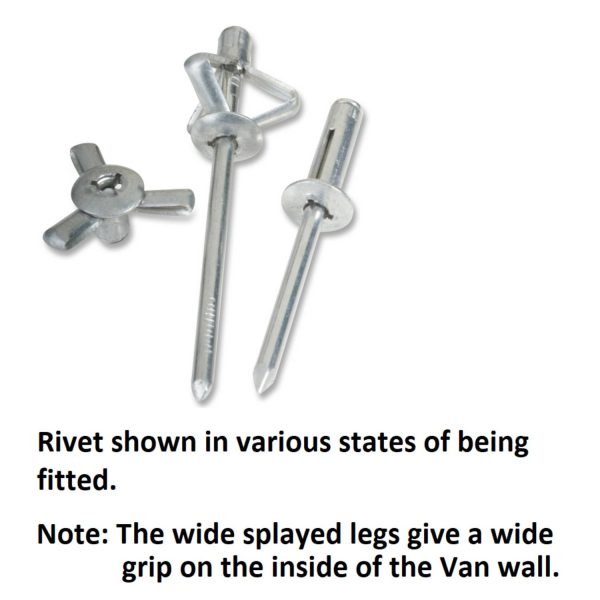

  • 8 x Special POP Rivets – large grip.

Tutorials

20191211 QFUD -P Assembly instructions for the QR Side mounting system for existing customer masts

Additional information

Weight 0.4 kg
Dimensions 11 × 11 × 16 cm
