Name: Double Strap Chimney Brackets Galvanised - Use with Larger Mast Lengths.
SKU: M100-1037
Price: 98.15 AUD
Availability: InStock

Double Strap Chimney Brackets Galvanised – Use with Larger Mast Lengths.

$98.15

Single strap Chimney Bracket

Part Number: CHMKITD-P

Inquire Now

Name

Quantity

Contact Number

Inquiry/Shipping Address

Address

City

State/Province

Postal Code

Country

Message

Description

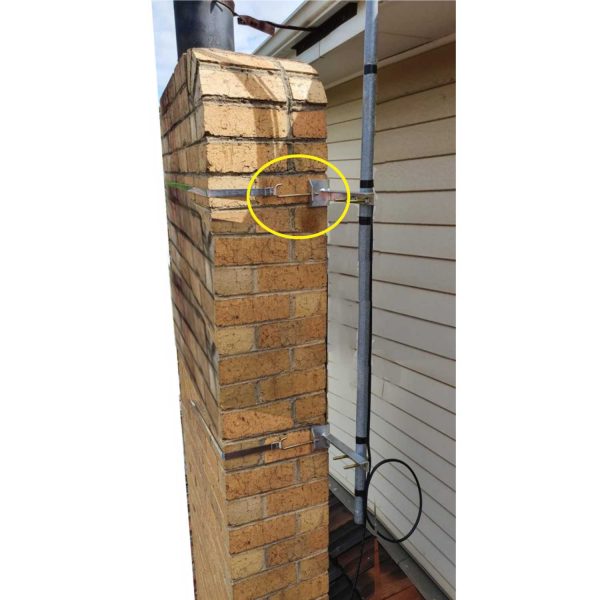

Double Strap Chimney Brackets, Double Arm and Strap bracket Kit for a Chimney. Ideal for longer masts/poles with no guying needed.

Double Strap Chimney Brackets is ideal for use when a longer mast is required. It allows for greater spacing between mounting points. Everything you need to mount those longer masts.

The straps are 5 meters long plus an additional 5 cm reach on the J- bolts for a combined circumference of the chimney of up to 5050 mm.

We recommend dropping a longer mast down below the lower bracket to balance the weight of the mast above the top bracket.

Use with your existing pole or mate with one of our lightweight extendable masts such as our 3000 mm to 3800 mm mast. See our section on masting.

Specifications

2 x Galvanised Brackets with 2 x 5-meter straps and Strap seals, 2 x J-bolts nuts and washers.

Parts Included

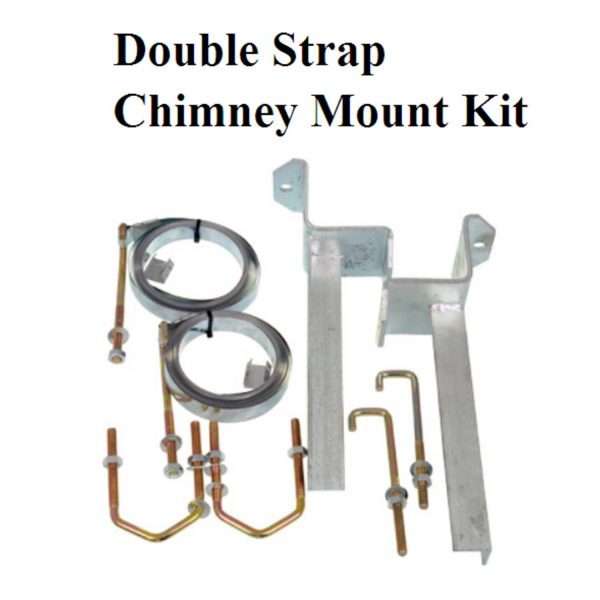

Parts include:

2 x Mounting Brackets.

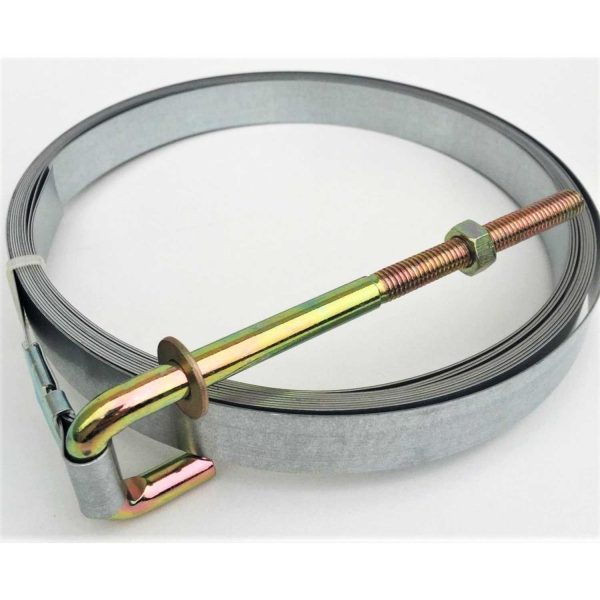

2 x 5000 mm Straps, one end pre-sealed to a 5/16” J bolt.

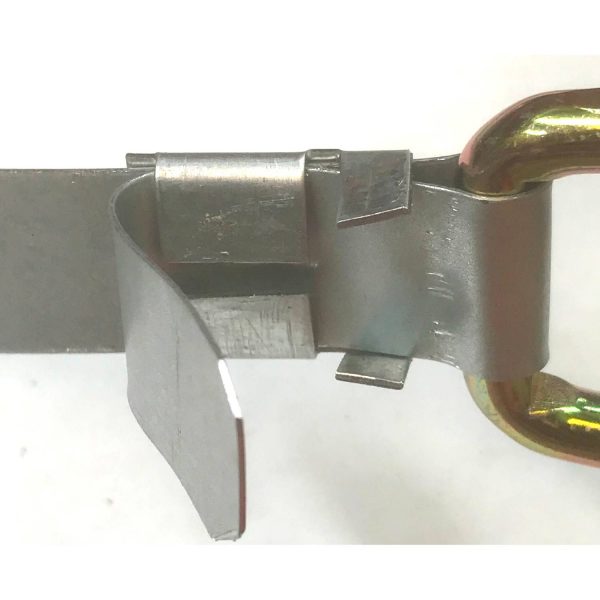

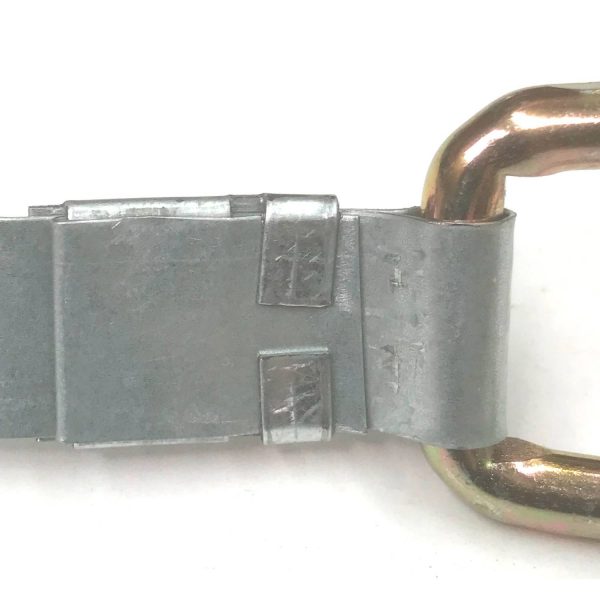

Strap seals,
2 x 5/16-inch J Bolts and 5/16inch nuts and washers,
2 x U-Bolts.
2 x 5/16-inch nuts and washers

Tutorials

Double Chimney bracket Instruction sheet. doc

Additional information

Weight	3.2 kg
Dimensions	31.0 × 22.0 × 11.0 cm
