RV Thru the wall Connection Kit for external antenna point PM8L

RV Thru the wall Connection Kit for an external antenna point

$17.86

Thru the wall connection Kit Suitable for a wall thickness of up to 35 mm. For Bulkheads or storage boxes

Part Number: PM8L-P

Brand:
Share this product!
Report Abuse

Description

RV Thru the wall Connection Kit for an external antenna point- ideal for Fiberglass sandwich Van walls or Bus conversions, repairs etc.

Caravan Thru the wall Connection Kit for an external antenna point is ideal for fiberglass sandwich Vans or storage boxes or to run through a bulkhead on a Bus conversion.

A Bulkhead fitting for a Wall thickness of up to 35 mm. No special tools needed.

A Very useful fitting for those odd or hard to solve jobs – yet easy to use and a very efficient high quality very low loss 3 GHz fitting.

Use the fitting to bring the antenna signal in through the outer wall and into the vehicle and seal with the rubber and stainless washer – which can accommodate even a slightly curved wall without leaking.

Connect the cable and run to a viewing point. See our range of options for cable and connectors and internal fittings to complete your TV Antenna cabling and connections!

This is a useful fitting for vehicles such as Combi Vans, HiAce Camper trailers or Vehicles with a Fiberglass wall or at a bulkhead.

Note:

  • We have extensions to lengthen the unit for thicker bulk heads if required.



Specifications

Specifications:

Specifications:

    • Wall thickness up to 35 mm.
    • Stainless steel external fittings.
    • Black UV stabilised Silicon rubber cable weather protection boot.
    • Rated frequency range: 45 MHz – 3 GHz.

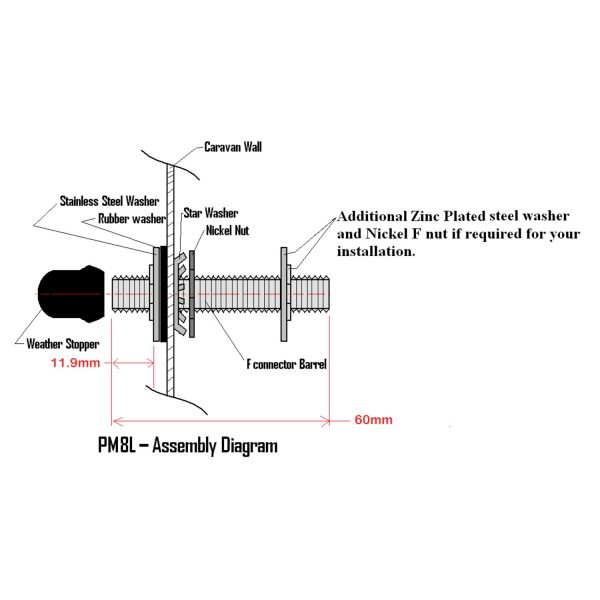

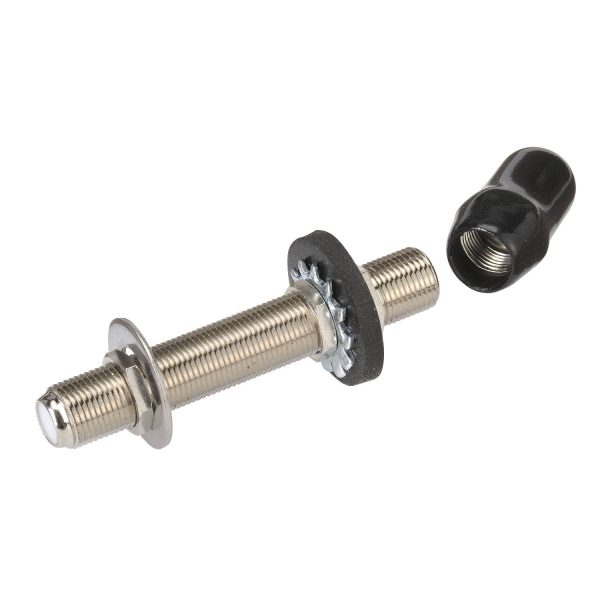

Parts Included

Parts Included:

  • 60 mm “F” Joiner,
  • Rubber washer,
  • Stainless steel Flat washer,
  • Zinc plated flat washer,
  • 2 x Nickel “F” nut,
  • Star Washer,
  • Weather Boot



Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 0.1 kg
Dimensions 11 × 6 × 6 cm

Instructions

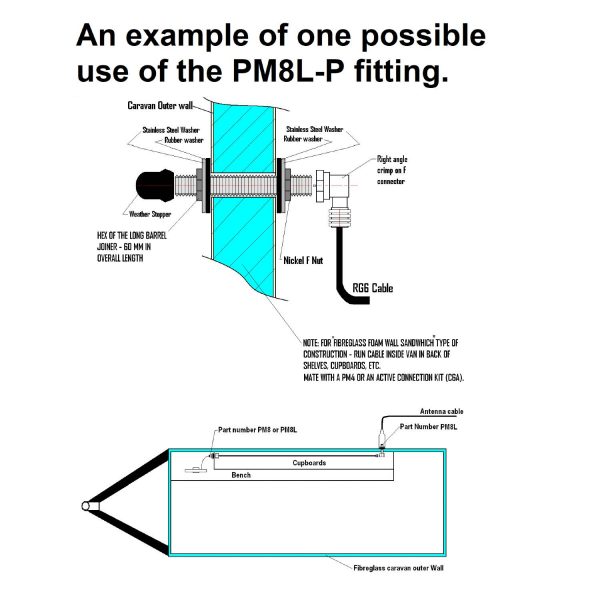

example of use of PM8L-P     PM8L Instructions SKU P100-1019
