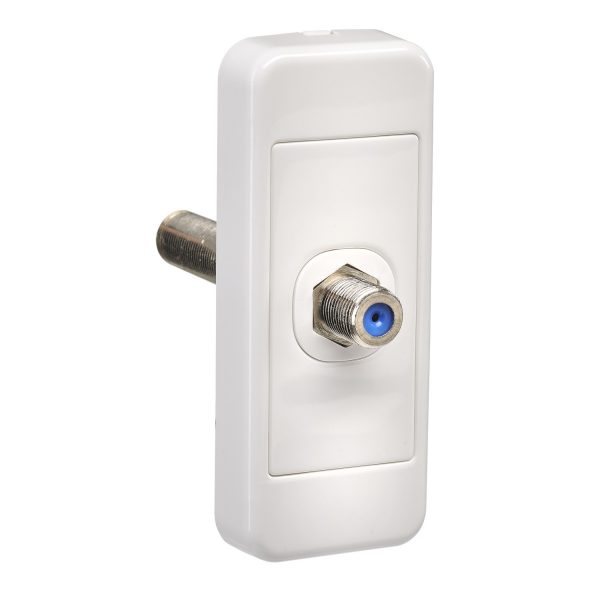

PCA6A caravan outlet plate
PCA6A Packed

Architrave Thru-the-Wall TV Outlet Plate, Ideal for Satellite or Free to Air antenna

$26.54

Passive outlets Architrave style Thru -the–wall Connection kit

Part Number: PCA6A-P

Brand:
Share this product!
Report Abuse

Description

Architrave Thru-the-Wall TV outlet Plate, Ideal for Satellite or Free to Air antenna.

This RV Architrave digital connection Outlet wall Plate is designed to suit any caravan, mobile home, etc, for a TV antenna Point, FM radio or satellite Connection.

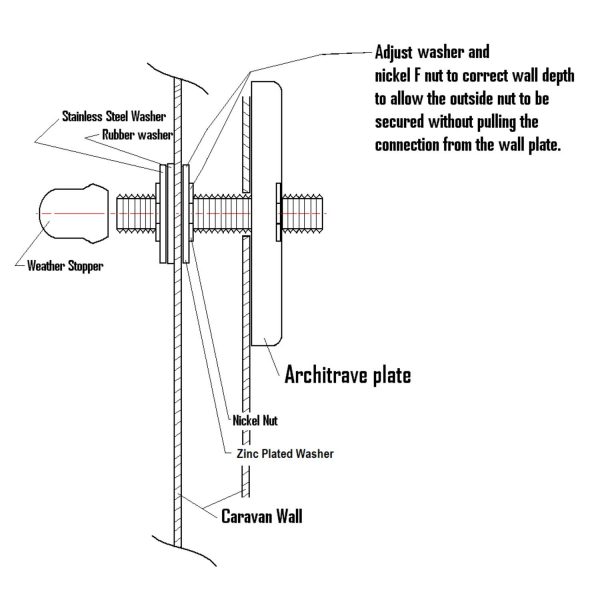

It is designed to go straight from the inside wall to the outside wall eliminating the need and loss of extra cable and connections. This creates a much more reliable connection.

This unit suits:

  • Wall thickness between 15 mm and 34 mm.
  • Extensions are available to extend the length if required.
  • Thru-The-Wall fitting for connection of antenna, satellite or FM Radio.
  • Any RF frequency between 45 MHz and 3 GHz- see specifications.



Specifications

Specifiications:

  • Wall thickness between 15mm and 34mm.
  • Stainless steel external fittings.
  • Black UV stabilised Silicon rubber cable weather protection boot.
  • Rated frequency range: 45 MHz – 1 GHz. Will function at high frequencies (up to 3 GHz) however, performance can reduce in the higher frequency range above the rated value.

Parts Included

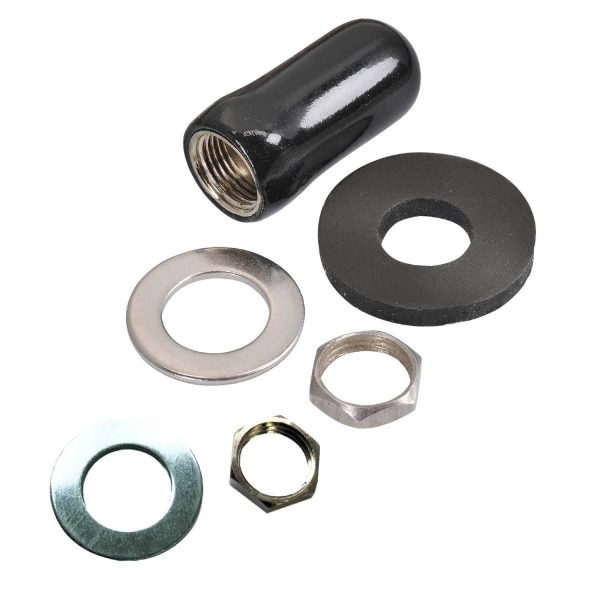

Parts Included:

  • Architrave Passive through the wall connection kit.
  • Rubber washer.
  • 3/8-inch ID to 3/4-inch OD Stainless steel Flat washer.
  • 3/8-inch ID to 3/4-inch OD Flat washer – ZP.
  • Stainless steel “F” nut.
  • Screw on Weather Stopper – Silicon Rubber outside and Metal threaded insert inside.
  • 2 x #6 Panhead Philips Self tapping screws.
  • Full installation Instructions.

Tutorials

…..

Vendor Information

  • Store Name: Wilkgard Technology Group
  • Vendor: Wilkgard Technology Group
  • Address: 13/12 Edina Rd
    Ferntree Gully
    Victoria 3156
  • No ratings found yet!

Additional information

Weight 0.2 kg
Dimensions 11 × 11 × 16 cm
